Spring Cloud- Circuit Breaker using Hystrix

In a previous post we had implemented Fallback method using Hystrix. In this post we implement the Circuit Breaker using Hystrix

Spring Cloud - Table Of Contents

Microservice Registration and Discovery with Spring cloud using Netflix Eureka- Part 1. Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 2. Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 3. Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 4. Spring Cloud- Netflix Eureka + Ribbon Simple Example Spring Cloud- Netflix Eureka + Ribbon + Hystrix Fallback Simple Example Spring Cloud- Netflix Hystrix Circuit Breaker Simple Example Spring Cloud- Netflix Feign REST Client Simple Example Spring Cloud- Netflix Zuul +Eureka Simple Example Spring Cloud Config Server using Native Mode Simple Example Spring Cloud Config Server Using Git Simple Example Spring Boot Admin Simple Example Spring Cloud Stream Tutorial - Publish Message to RabbitMQ Simple Example Spring Cloud Stream Tutorial - Consume Message from RabbitMQ Simple Example Spring Cloud Tutorial - Publish Events Using Spring Cloud Bus Spring Cloud Tutorial - Stream Processing Using Spring Cloud Data Flow Spring Cloud Tutorial - Distributed Log Tracing using Sleuth and Zipkin Example Spring Cloud Tutorial - Spring Cloud Gateway Hello World Example Spring Cloud Tutorial - Spring Cloud Gateway Filters Example Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka Example Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka + Netflix Hystrix Example Spring Cloud Tutorial - Secure Secrets using Spring Cloud Config + Vault Example

What is the Netflix Hystrix Circuit Breaker Feature? Need for it?

In previous posts we had two services- employee-consumer consuming the service exposed by the employee-producer.
Due to some reason the employee-producer exposed service throws an exception. In this case using Hystrix we defined a fallback method. In case of exception in the exposed service the fallback method returned some default value.
cloud7_1
If the exceptions keep on occuring in the firstPage method() then the Hystrix circuit will break and the employee consumer will skip the firtsPage method all together and directly call the fallback method.

The purpose of circuit breaker is to give time to the first page method or other methods that the firstpage method might be calling and is causing the exception to recover. It might happen that on less load the issue causing the exceptions have better chance of recovering


cloud7_3

Video

This tutorial is explained in the below Youtube Video.

Lets Begin-

The employee-producer had the following firstpage method annotated with the hystrix annotation.
package com.javainuse.controllers;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import com.javainuse.model.Employee;
import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;

@RestController
public class TestController {

	@RequestMapping(value = "/employee", method = RequestMethod.GET)
	@HystrixCommand(fallbackMethod = "getDataFallBack")
	public Employee firstPage() {

		System.out.println("Inside firstPage");

		Employee emp = new Employee();
		emp.setName("emp1");
		emp.setDesignation("manager");
		emp.setEmpId("1");
		emp.setSalary(3000);

		if(emp.getName().equalsIgnoreCase("emp1"))
			throw new RuntimeException();

		return emp;
	}

	public Employee getDataFallBack() {

		System.out.println("Inside fallback");


		Employee emp = new Employee();
		emp.setName("fallback-emp1");
		emp.setDesignation("fallback-manager");
		emp.setEmpId("fallback-1");
		emp.setSalary(3000);

		return emp;

	}

}



Previously using employee-consumer we were calling the employee producer only once. Now using for loop we will call it multiple times and check if the circuit trips and the fallback method gets called directly.
package com.javainuse;

import java.io.IOException;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestClientException;

import com.javainuse.controllers.ConsumerControllerClient;

@SpringBootApplication
public class SpringBootHelloWorldApplication {

	public static void main(String[] args) throws RestClientException, IOException {
		ApplicationContext ctx = SpringApplication.run(
				SpringBootHelloWorldApplication.class, args);

		ConsumerControllerClient consumerControllerClient=ctx.getBean(ConsumerControllerClient.class);
		System.out.println(consumerControllerClient);
		for(int i=0;i<100;i++)
		consumerControllerClient.getEmployee();

	}

	@Bean
	public  ConsumerControllerClient  consumerControllerClient()
	{
		return  new ConsumerControllerClient();
	}
}

As we had done in previous posts- Start the following Spring Boot Applications-
  • eureka-server
  • employee-producer
  • employee-consumer

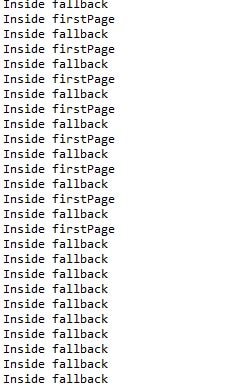

On running the employee consumer we get the output in employee-producer module as follows-
cloud7_5
We can see that after some exceptions the fallback method getting called directly and the hystrix annotated method skipped. So the hystrix circuit is open.
