Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka Example

In a previous tutorial we had implemented Spring Cloud Gateway Hello World Example. In this tutorial we will be implementing Spring Cloud Gateway and get the microservices deployment url using Netflix Eureka Discovery Service. In a previous tutorial we had implemented Netflix Eureka Discovery Service. When we start a project, we usually have all the configurations in the properties file. As more and more services are developed and deployed, adding and modifying these properties become more complex. Some services might go down, while some the location might change. This manual changing of properties may create issues. Eureka Service Registration and Discovery helps in such scenarios. As all services are registered to the Eureka server and lookup done by calling the Eureka Server, any change in service locations need not be handled and is taken care of

Spring Cloud - Table Of Contents
Microservice Registration and Discovery with Spring cloud using Netflix Eureka- Part 1.
Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 2.
Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 3.
Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 4.
Spring Cloud- Netflix Eureka + Ribbon Simple Example
Spring Cloud- Netflix Eureka + Ribbon + Hystrix Fallback Simple Example
Spring Cloud- Netflix Hystrix Circuit Breaker Simple Example
Spring Cloud- Netflix Feign REST Client Simple Example
Spring Cloud- Netflix Zuul +Eureka Simple Example
Spring Cloud Config Server using Native Mode Simple Example
Spring Cloud Config Server Using Git Simple Example
Spring Boot Admin Simple Example
Spring Cloud Stream Tutorial - Publish Message to RabbitMQ Simple Example
Spring Cloud Stream Tutorial - Consume Message from RabbitMQ Simple Example
Spring Cloud Tutorial - Publish Events Using Spring Cloud Bus
Spring Cloud Tutorial - Stream Processing Using Spring Cloud Data Flow
Spring Cloud Tutorial - Distributed Log Tracing using Sleuth and Zipkin Example
Spring Cloud Tutorial - Spring Cloud Gateway Hello World Example
Spring Cloud Tutorial - Spring Cloud Gateway Filters Example
Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka Example
Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka + Netflix Hystrix Example
Spring Cloud Tutorial - Secure Secrets using Spring Cloud Config + Vault Example

Spring Cloud Gateway + Neflix Eureka Discovery Service

We will be modifying the code we had implemented in the previous Spring Cloud Tutorial - Spring Cloud Gateway Hello World Example.

Netflix Eureka Discovery Service Implementation

The maven project will be as follows-

The pom.xml will be as follows-

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.7.RELEASE</version>
		<relativePath />
	</parent>
	<groupId>com.javainuse</groupId>
	<artifactId>cloud-eureka-discovery-service</artifactId>
	<version>1.0.0-SNAPSHOT</version>
	<name>cloud-eureka-discovery-service</name>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.SR2</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
		</dependency>

	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>0</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

	<repositories>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
		</repository>
	</repositories>

</project>

Define the application.properties as follows-

spring:
  application:
    name: eureka-discovery-service

server:
  port: 8083
eureka:
  client:
    registerWithEureka: false
    fetchRegistry: false
    service-url:
      defaultZone: http://localhost:8083/eureka

Define the bootstrap class with the SpringBootApplication Annotation. Also here we will also be using the EnableEurekaServer annotation.

package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@SpringBootApplication
@EnableEurekaServer
public class EurekaDiscoveryApplication {

	public static void main(String[] args) {
		SpringApplication.run(EurekaDiscoveryApplication.class, args);
	}

}

Modify First Microservice

We will be modifying the first-service module we had developed in the previous tutorial.
The Maven project will be as follows-

In the pom.xml add the netflix eureka client dependency as follows -

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.7.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.javainuse</groupId>
	<artifactId>first-service</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.SR2</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>#36;{spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>
	<repositories>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
		</repository>
	</repositories>
	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Define the application.yml as follows-

spring:
  application:
    name: first-service
server:
  port: 8081
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8083/eureka

Modify the FirstApplication to add the EnableEurekaClient annotation

package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

@SpringBootApplication
@EnableEurekaClient
public class FirstApplication {

	public static void main(String[] args) {
		SpringApplication.run(FirstApplication.class, args);
	}

}

Modify Second Microservice

We will be modifying the second-service module we had developed in the previous tutorial.
In the pom.xml add the netflix eureka client dependency as follows -

The pom.xml will be as follows-

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.7.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.javainuse</groupId>
	<artifactId>second-service</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.SR2</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>0</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>
	<repositories>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
		</repository>
	</repositories>
	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Define the application.properties as follows-

spring:
  application:
    name: second-service
server:
  port: 8082
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8083/eureka

Modify the SecondApplication to add the EnableEurekaClient annotation

package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

@SpringBootApplication
@EnableEurekaClient
public class SecondApplication {

	public static void main(String[] args) {
		SpringApplication.run(SecondApplication.class, args);
	}

}

Modify Spring Cloud Gateway Microservice using property based configuration

We will be modifying the spring-cloud-gateway-service module we had developed in the previous tutorial.
In the pom.xml add the netflix eureka client dependency as follows -

The pom.xml will be as follows-

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.7.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.javainuse</groupId>
	<artifactId>cloud-gateway-service</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>gateway-service</name>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.SR2</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-gateway</artifactId>
		</dependency>
		<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>
	<repositories>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
		</repository>
	</repositories>
	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Define the application.yml as follows-

server:
  port: 8080

eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8083/eureka

spring:
  application:
    name: gateway-service
  cloud:
    gateway:
      routes:
      - id: employeeModule
        uri: lb://FIRST-SERVICE
        predicates:
        - Path=/employee/**
      - id: consumerModule
        uri: lb://SECOND-SERVICE
        predicates:
        - Path=/consumer/**

Modify the APIGatewayApplication to add the EnableEurekaClient annotation

package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

@SpringBootApplication
@EnableEurekaClient
public class APIGatewayApplication {

	public static void main(String[] args) {
		SpringApplication.run(SecondApplication.class, args);
	}

}

Start the three microservices we have developed-

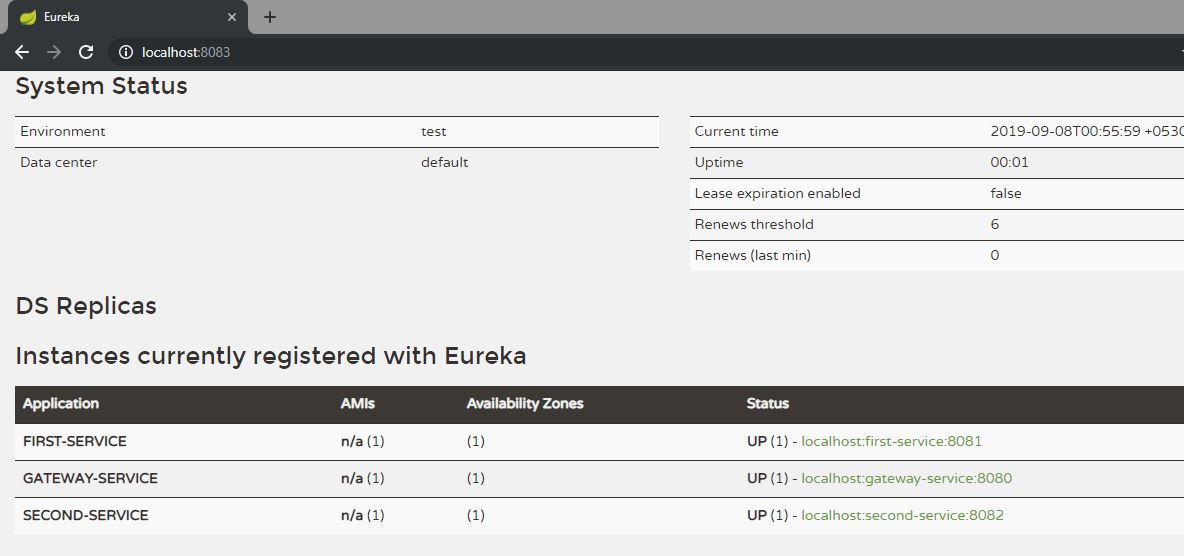

• Go to url - localhost:8083/


• Go to url - localhost:8080/employee/message


• Go to url - localhost:8080/consumer/message



Modify Spring Cloud Gateway Microservice using Java based configuration

We will be modifying the spring-cloud-gateway-service module we had developed in the previous tutorial.
In the pom.xml add the netflix eureka client dependency as follows -

The pom.xml will be as follows-

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.7.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.javainuse</groupId>
	<artifactId>cloud-gateway-service</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>gateway-service</name>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.SR2</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-gateway</artifactId>
		</dependency>
		<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>
	<repositories>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
		</repository>
	</repositories>
	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Define the application.yml as follows-

server:
  port: 8080

eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8083/eureka

Create the Spring Cloud Configuration for cloud gateway as follows-

package com.javainuse.config;

import org.springframework.cloud.gateway.route.RouteLocator;
import org.springframework.cloud.gateway.route.builder.RouteLocatorBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class SpringCloudConfig {

    @Bean
    public RouteLocator gatewayRoutes(RouteLocatorBuilder builder) {
        return builder.routes()
                .route(r -> r.path("/employee/**")
                        .uri("lb://FIRST-SERVICE")
                        .id("employeeModule"))

                .route(r -> r.path("/consumer/**")
                        .uri("lb://SECOND-SERVICE")
                        .id("consumerModule"))
                .build();
    }

}

Modify the APIGatewayApplication to add the EnableEurekaClient annotation

package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

@SpringBootApplication
@EnableEurekaClient
public class APIGatewayApplication {

	public static void main(String[] args) {
		SpringApplication.run(SecondApplication.class, args);
	}

}

Start the three microservices we have developed-

• Go to url - localhost:8083/


• Go to url - localhost:8080/employee/message


• Go to url - localhost:8080/consumer/message



Download Source Code

Download it -
Spring Cloud Eureka Discovery service
Spring Boot First Microservice
Spring Boot Second Microservice
Spring Cloud Gateway Microservice using property config
Spring Cloud Gateway Microservice using java config

See Also
Spring Boot Hello World Application- Create simple controller and jsp view using Maven
Spring Boot Tutorial-Spring Data JPA
Spring Boot + Simple Security Configuration
Pagination using Spring Boot Simple Example
Spring Boot + ActiveMQ Hello world Example
Spring Boot + Swagger Example Hello World Example
Spring Boot + Swagger- Understanding the various Swagger Annotations
Spring Boot Main Menu
Spring Boot Interview Questions
