Spring Cloud Config Example Using GIT Repo

In previous tutorial we implemented Spring Cloud Config using Native mode. We had also seen what need Spring Cloud Config fulfills. In this tutorial we will be implementing Spring Cloud Config using Git.

Spring Cloud - Table Of Contents
Microservice Registration and Discovery with Spring cloud using Netflix Eureka- Part 1.
Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 2.
Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 3.
Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 4.
Spring Cloud- Netflix Eureka + Ribbon Simple Example
Spring Cloud- Netflix Eureka + Ribbon + Hystrix Fallback Simple Example
Spring Cloud- Netflix Hystrix Circuit Breaker Simple Example
Spring Cloud- Netflix Feign REST Client Simple Example
Spring Cloud- Netflix Zuul +Eureka Simple Example
Spring Cloud Config Server using Native Mode Simple Example
Spring Cloud Config Server Using Git Simple Example
Spring Boot Admin Simple Example
Spring Cloud Stream Tutorial - Publish Message to RabbitMQ Simple Example
Spring Cloud Stream Tutorial - Consume Message from RabbitMQ Simple Example
Spring Cloud Tutorial - Publish Events Using Spring Cloud Bus
Spring Cloud Tutorial - Stream Processing Using Spring Cloud Data Flow
Spring Cloud Tutorial - Distributed Log Tracing using Sleuth and Zipkin Example
Spring Cloud Tutorial - Spring Cloud Gateway Hello World Example
Spring Cloud Tutorial - Spring Cloud Gateway Filters Example
Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka Example
Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka + Netflix Hystrix Example
Spring Cloud Tutorial - Secure Secrets using Spring Cloud Config + Vault Example

Lets Begin-

As discussed previously this is the module architecture we will be developing.



The steps we will be following for this tutorial will be-

• Creating a Git Project. Creating the application.properties in this project
• Modifying the employee-config-server module we created previously to use the application.properties from the Git Repo instead of Native files.

• Configure the Git Repo 1. Got to GitHib. If already have an account login or else SignUp.

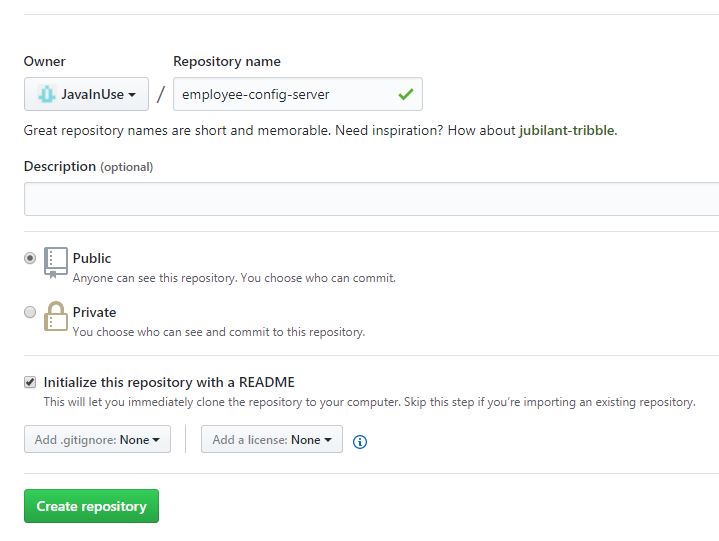

  2. Create a new repository named employee-config-server.

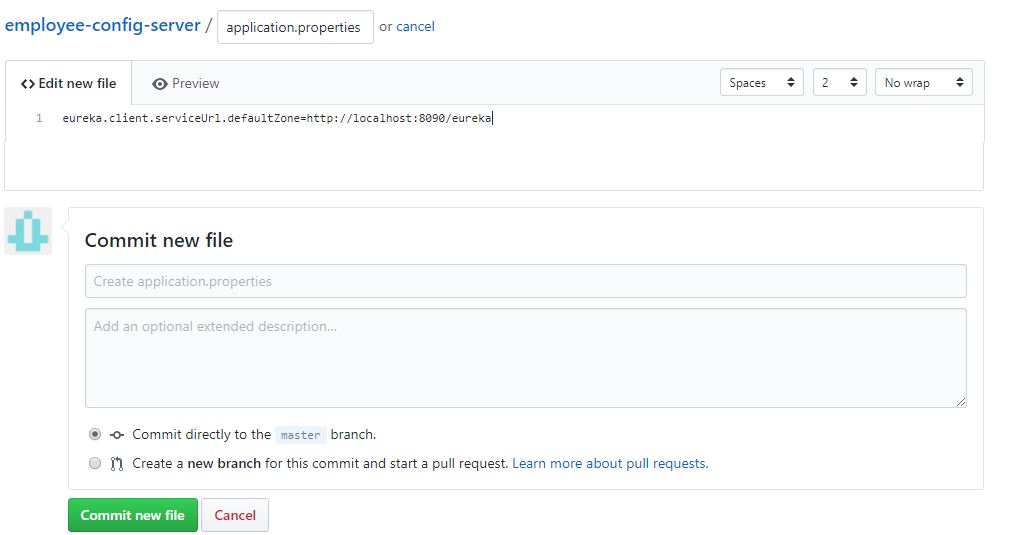

  3. Finally create anew file named application.properties, copy the global properties like Eureka url and commit this file.




  eureka.client.serviceUrl.defaultZone=http://localhost:8090/eureka




• Next we will modify the employee-config-server module we created previously.
  1. From the src/main/resources/application.properties remove the native property and add the Git project url we just created as follows-

  server.port=8888
  spring.cloud.config.server.git.uri=https://github.com/JavaInUse/employee-config-server


  2. We can now delete the common-config folders as the global properties will be read from Git Repo.

Next start the modules in following sequence-

• employee-config-server
• eureka-server
• employee-producer

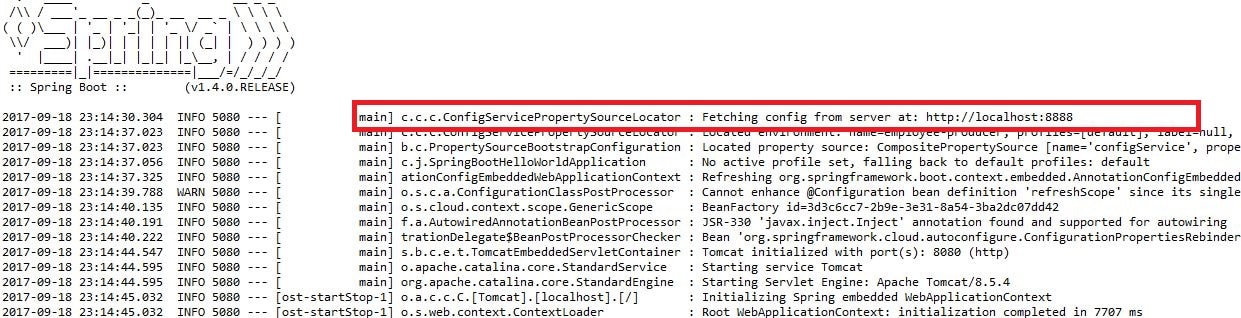

On running the employee-producer we get the output as follows-

The employee-producer module gets the eureka properties from the employee-config-server module and starts successfully.

Download Source Code

Download it -
Employee Config Server using Git
Employee Producer With Config Server
Eureka Server
