Microservice Registration and Discovery with Spring cloud using Netflix Eureka

In this series we learn how to use Netflix Spring Cloud Components. In these posts we make use of Netflix component Eureka for service registry and discovery.

Spring Cloud - Table Of Contents

Microservice Registration and Discovery with Spring cloud using Netflix Eureka- Part 1. Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 2. Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 3. Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 4. Spring Cloud- Netflix Eureka + Ribbon Simple Example Spring Cloud- Netflix Eureka + Ribbon + Hystrix Fallback Simple Example Spring Cloud- Netflix Hystrix Circuit Breaker Simple Example Spring Cloud- Netflix Feign REST Client Simple Example Spring Cloud- Netflix Zuul +Eureka Simple Example Spring Cloud Config Server using Native Mode Simple Example Spring Cloud Config Server Using Git Simple Example Spring Boot Admin Simple Example Spring Cloud Stream Tutorial - Publish Message to RabbitMQ Simple Example Spring Cloud Stream Tutorial - Consume Message from RabbitMQ Simple Example Spring Cloud Tutorial - Publish Events Using Spring Cloud Bus Spring Cloud Tutorial - Stream Processing Using Spring Cloud Data Flow Spring Cloud Tutorial - Distributed Log Tracing using Sleuth and Zipkin Example Spring Cloud Tutorial - Spring Cloud Gateway Hello World Example Spring Cloud Tutorial - Spring Cloud Gateway Filters Example Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka Example Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka + Netflix Hystrix Example
In this post we develop 2 spring boot microservices named as employee-producer and employee-consumer.
As the name suggests employee-producer will be exposing REST APIs which will be consumed by the employee-consumer.

sprcloud_1-5
In the next post we will develop a Eureka Server microservice using Spring Boot and register our employee-producer service to it.

Video

This tutorial is explained in the below Youtube Video.


Lets Begin-

  • Develop employee-producer as follows- The maven project we will be creating is as follows-

    sprcloud_1-1
    The pom.xml with spring batch dependencies is as follows-

    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>

    	<groupId>com.javainuse</groupId>
    	<artifactId>employee-producer</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<packaging>jar</packaging>

    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>1.4.1.RELEASE</version>
    		<relativePath /> <!-- lookup parent from repository -->
    	</parent>

    	<properties>
    		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    		<java.version>1.8</java.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-web</artifactId>
    		</dependency>


    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>

    	</dependencies>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>


    </project>


Define the domain class Employee
package com.javainuse.model;

public class Employee {
	private String empId;
	private String name;
	private String designation;
	private double salary;

	public Employee() {
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getDesignation() {
		return designation;
	}

	public void setDesignation(String designation) {
		this.designation = designation;
	}

	public double getSalary() {
		return salary;
	}

	public void setSalary(double salary) {
		this.salary = salary;
	}

	public String getEmpId() {
		return empId;
	}

	public void setEmpId(String empId) {
		this.empId = empId;
	}

}

Expose the service using the Controller as-
package com.javainuse.controllers;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import com.javainuse.model.Employee;

@RestController
public class TestController {

	@RequestMapping(value = "/employee", method = RequestMethod.GET)
	public Employee firstPage() {

		Employee emp = new Employee();
		emp.setName("emp1");
		emp.setDesignation("manager");
		emp.setEmpId("1");
		emp.setSalary(3000);

		return emp;
	}

}

Finally define the Spring Boot Main class
package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootHelloWorldApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringBootHelloWorldApplication.class, args);
	}
}
Compile and the run the SpringBootHelloWorldApplication.java as a Java application.
Go to localhost:8080/employee
Deploy Spring Boot Microservice
  • Develop employee-consumer as follows- The maven project we will be creating is as follows-

    sprcloud_1-4

    The pom.xml with spring batch dependencies is as follows-
    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>

    	<groupId>com.javainuse</groupId>
    	<artifactId>employee-consumer</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<packaging>jar</packaging>

    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>1.4.1.RELEASE</version>
    		<relativePath /> <!-- lookup parent from repository -->
    	</parent>

    	<properties>
    		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    		<java.version>1.8</java.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-web</artifactId>
    		</dependency>


    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>

    	</dependencies>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>


    </project>


    Define the controller to consume the service exposed by employee-producer above using the RESTTemplate as follows-
    package com.javainuse.controllers;

    import java.io.IOException;
    import org.springframework.http.HttpEntity;
    import org.springframework.http.HttpHeaders;
    import org.springframework.http.HttpMethod;
    import org.springframework.http.MediaType;
    import org.springframework.http.ResponseEntity;
    import org.springframework.web.client.RestClientException;
    import org.springframework.web.client.RestTemplate;

    public class ConsumerControllerClient {

    	public void getEmployee() throws RestClientException, IOException {

    		String baseUrl = "http://localhost:8080/employee";
    		RestTemplate restTemplate = new RestTemplate();
    		ResponseEntity<String> response=null;
    		try{
    		response=restTemplate.exchange(baseUrl,
    				HttpMethod.GET, getHeaders(),String.class);
    		}catch (Exception ex)
    		{
    			System.out.println(ex);
    		}
    		System.out.println(response.getBody());
    	}

    	private static HttpEntity<?> getHeaders() throws IOException {
    		HttpHeaders headers = new HttpHeaders();
    		headers.set("Accept", MediaType.APPLICATION_JSON_VALUE);
    		return new HttpEntity<>(headers);
    	}
    }


    Finally create the Bean for the above controller, load it and call the getEmployee() Method.
    package com.javainuse;

    import java.io.IOException;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.context.ApplicationContext;
    import org.springframework.context.annotation.Bean;
    import org.springframework.web.client.RestClientException;

    import com.javainuse.controllers.ConsumerControllerClient;

    @SpringBootApplication
    public class SpringBootHelloWorldApplication {

    	public static void main(String[] args) throws RestClientException, IOException {
    		ApplicationContext ctx = SpringApplication.run(
    				SpringBootHelloWorldApplication.class, args);

    		ConsumerControllerClient consumerControllerClient=ctx.getBean(ConsumerControllerClient.class);
    		System.out.println(consumerControllerClient);
    		consumerControllerClient.getEmployee();

    	}

    	@Bean
    	public  ConsumerControllerClient  consumerControllerClient()
    	{
    		return  new ConsumerControllerClient();
    	}
    }


    Define the application.properties as
    server.port=8091

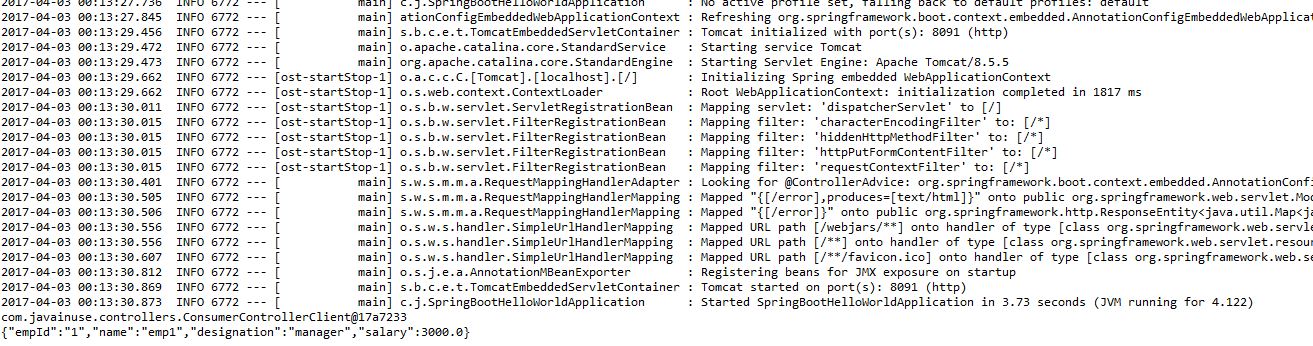

    Running the Rest Client we get the output as
    sprcloud_1-3
  • Download Source Code

    Download it -
    Employee Producer Service
    Employee Consumer Service
