Implement Spring Boot Security + JSON Web Token + MySQL

Implement Spring Boot Security + JSON Web Token + MySQL

In this tutorial series we have implemented two Spring Boot Security examples - In both these examples we had harcoded user in the UserDetailsService as follows -
package com.javainuse.springbootsecurity.config;

import java.util.Arrays;
import java.util.List;

import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

@Service
public class CustomUserDetailsService implements UserDetailsService {

	@Override
	public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
		List<SimpleGrantedAuthority> roles = null;
		if (username.equals("admin")) {
			roles = Arrays.asList(new SimpleGrantedAuthority("ROLE_ADMIN"));
			return new User("admin", "$2a$10$0Nv/Qa7m8DdjWpBS2XRZWeP8rWDB7OdScb2grQSRDS9I9fWWlBNG2", roles);
		}
		if (username.equals("user")) {
			roles = Arrays.asList(new SimpleGrantedAuthority("ROLE_USER"));
			return new User("user", "$2a$10$5VikX1NNQFL9f.N7Ta5wVuBL5HuPi7ro5Q3UZYGVOCURwiotGrVCS", roles);
		}
		throw new UsernameNotFoundException("User not found with the name " + username);
	}

}
In real scenarios this will not be the case. In this tutorial we will be making use of MySQL database for storing and authenticating user details. We will be storing User Details in the MySQL database. Also during authentication these details will be used.
This implementation we will be dividing into 2 parts -
  • Register new User to MySQL database
  • Use the MySQL for authenticating users
We will be modifying the example we had implemented in the previous tutorial.

Video

This tutorial is explained in the below Youtube Video.

Spring Boot JSON Web Token- Table of Contents

Understanding the need for JSON Web Token(JWT) Understanding JWT Structure Implement Spring Boot Security Implement Spring Boot + JSON Web Token Security Implement Spring Boot Security + JSON Web Token + MySQL Spring Boot RestTemplate + JWT Authentication Example Spring Boot Security - Refresh Expired JSON Web Token Angular 7 + Spring Boot JWT Authentication Hello World Example Online JWT Generator Online JWT Decoder

Register new User to MySQL database

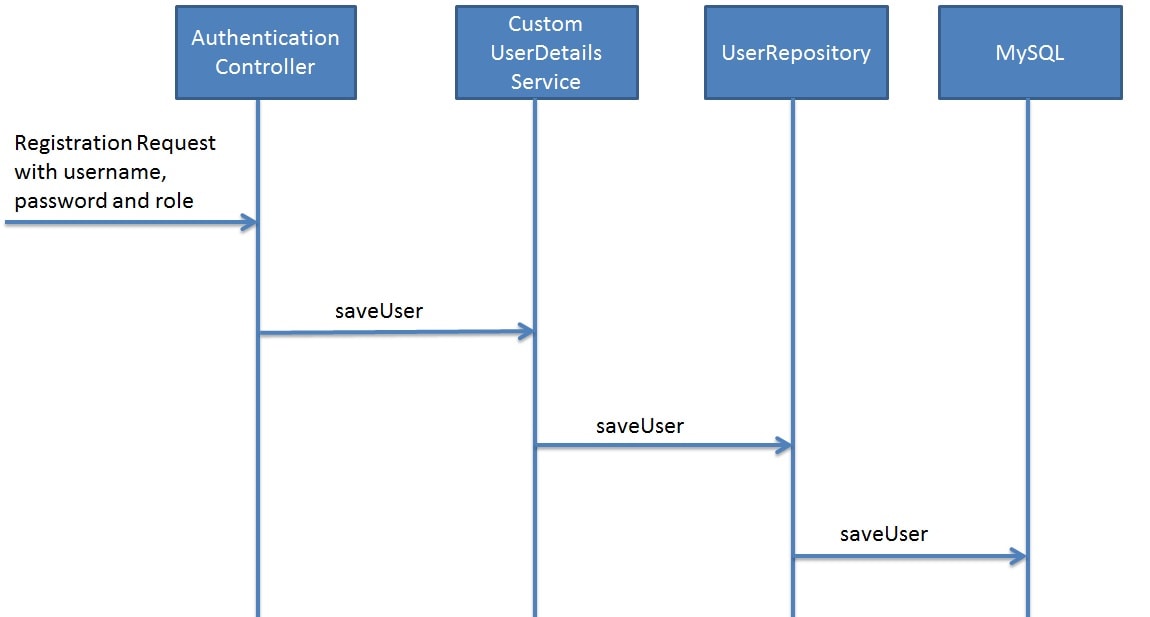

The new user registration process will be as follows -

In the pom.xml add the jpa and mysql dependency-
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.2.0.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.javainuse</groupId>
	<artifactId>spring-boot-security</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>spring-boot-security</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-security</artifactId>
		</dependency>
		<dependency>
			<groupId>io.jsonwebtoken</groupId>
			<artifactId>jjwt</artifactId>
			<version>0.9.1</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>
In application properties specify mysql config properties-
jwt.secret = javainuse
jwt.expirationDateInMs=18000000
spring.datasource.url=jdbc:mysql://localhost/bootjwt?createDatabaseIfNotExist=true&autoReconnect=true&useSSL=false
spring.datasource.username=root
spring.datasource.password=root
spring.jpa.hibernate.ddl-auto=create-drop
Create the Entity class as follows. It will be used while performing database operations-
package com.javainuse.springbootsecurity.model;

import com.fasterxml.jackson.annotation.JsonIgnore;

import javax.persistence.*;

@Entity
@Table(name = "user")
public class DAOUser {

	@Id
	@GeneratedValue(strategy = GenerationType.IDENTITY)
	private long id;
	@Column
	private String username;
	@Column
	private String password;
	@Column
	private String role;

	public String getRole() {
		return role;
	}

	public void setRole(String role) {
		this.role = role;
	}

	public String getUsername() {
		return username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}

}





Define the UserDTO model class as follows. It is responsible for getting values from user request.
package com.javainuse.springbootsecurity.model;

public class UserDTO {
	private String username;
	private String password;
	private String role;

	public String getRole() {
		return role;
	}

	public void setRole(String role) {
		this.role = role;
	}

	public String getUsername() {
		return username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}

}
Next we define the UserRepository which is an interface that extends the Spring Framework class JpaRepository. JpaRepository class is a generics and takes the following two parameters as arguments-
  • What type of Object will this repository be working with- In our case DAOUser
  • Id will be id defined in the DAOUser i.e long
Thats the only configuration required for the repository class. The required operation of inserting user details in DB will now be provided by default by this repository.
Define the UserRepository class as follows.
package com.javainuse.springbootsecurity.repository;

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

import com.javainuse.springbootsecurity.model.DAOUser;


@Repository
public interface UserRepository extends JpaRepository<DAOUser, Long> {

}

Modify CustomUserDetailsService to save the new user in MySQL database using the UserRepository.
package com.javainuse.springbootsecurity.config;

import java.util.Arrays;
import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

import com.javainuse.springsecurity.model.DAOUser;
import com.javainuse.springsecurity.model.UserDTO;
import com.javainuse.springsecurity.repository.UserRepository;

@Service
public class CustomUserDetailsService implements UserDetailsService {

	@Autowired
	private UserRepository userDao;

	@Autowired
	private PasswordEncoder bcryptEncoder;

	@Override
	public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
		List<SimpleGrantedAuthority> roles=null;
		if(username.equals("admin"))
		{
		roles = Arrays.asList(new SimpleGrantedAuthority("ROLE_ADMIN"));
			return new User("admin", "$2y$12$I0Di/vfUL6nqwVbrvItFVOXA1L9OW9kLwe.1qDPhFzIJBpWl76PAe",
					roles);
		}
		else if(username.equals("user"))
		{
		roles = Arrays.asList(new SimpleGrantedAuthority("ROLE_USER"));
			return new User("user", "$2y$12$VfZTUu/Yl5v7dAmfuxWU8uRfBKExHBWT1Iqi.s33727NoxHrbZ/h2",
					roles);
		}
		throw new UsernameNotFoundException("User not found with username: " + username);
	}

	public DAOUser save(UserDTO user) {
		DAOUser newUser = new DAOUser();
		newUser.setUsername(user.getUsername());
		newUser.setPassword(bcryptEncoder.encode(user.getPassword()));
		newUser.setRole(user.getRole());
		return userDao.save(newUser);
	}

}

In the AuthenticationController we will be exposing a POST API to take user registration request and call the save method we defined in the CustomUserDetails Service
package com.javainuse.springbootsecurity.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.DisabledException;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import com.javainuse.springsecurity.config.CustomUserDetailsService;
import com.javainuse.springsecurity.config.JwtUtil;
import com.javainuse.springsecurity.model.AuthenticateRequest;
import com.javainuse.springsecurity.model.AuthenticationResponse;
import com.javainuse.springsecurity.model.UserDTO;


@RestController
public class AuthenticationController {

	@Autowired
	private AuthenticationManager authenticationManager;

	@Autowired
	private CustomUserDetailsService userDetailsService;

	@Autowired
	private JwtUtil jwtTokenUtil;


	@RequestMapping(value = "/authenticate", method = RequestMethod.POST)
	public ResponseEntity<?> createAuthenticationToken(@RequestBody AuthenticateRequest authenticationRequest) throws Exception {
		try {
			authenticationManager.authenticate(new UsernamePasswordAuthenticationToken(authenticationRequest.getUsername(), authenticationRequest.getPassword()));
		} catch (DisabledException e) {
			throw new Exception("USER_DISABLED", e);
		} catch (BadCredentialsException e) {
			throw new Exception("INVALID_CREDENTIALS", e);
		}
		final UserDetails userDetails = userDetailsService
				.loadUserByUsername(authenticationRequest.getUsername());

		final String token = jwtTokenUtil.generateToken(userDetails);

		return ResponseEntity.ok(new AuthenticationResponse(token));
	}

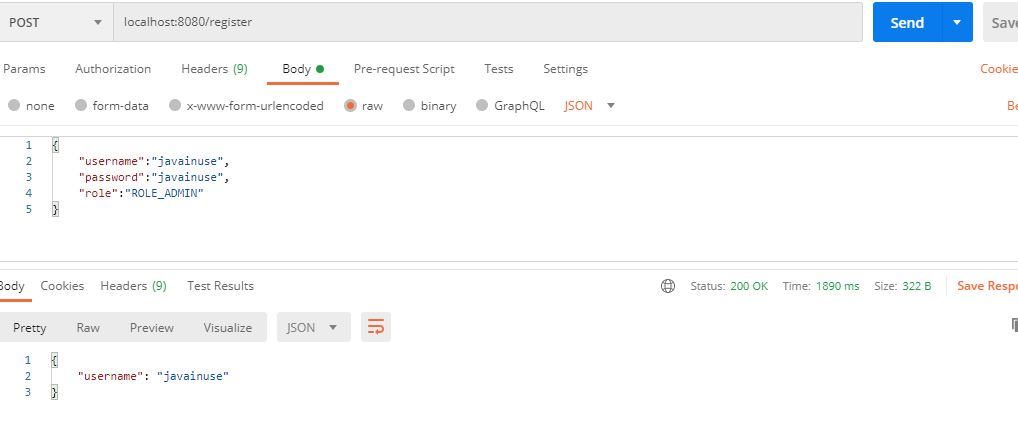

	@RequestMapping(value = "/register", method = RequestMethod.POST)
	public ResponseEntity<?> saveUser(@RequestBody UserDTO user) throws Exception {
		return ResponseEntity.ok(userDetailsService.save(user));
	}

}
In Spring Security Configuration we should also allow the /register url without authentication.
package com.javainuse.springbootsecurity.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

@Configuration
@EnableWebSecurity
public class SpringSecurityConfiguration extends WebSecurityConfigurerAdapter{

	@Autowired
	private CustomUserDetailsService userDetailsService;

	@Autowired
	private CustomJwtAuthenticationFilter customJwtAuthenticationFilter;

	@Autowired
	private JwtAuthenticationEntryPoint jwtAuthenticationEntryPoint;

	@Bean
	public PasswordEncoder passwordEncoder(){
		return new BCryptPasswordEncoder();
	}

	@Override
	public void configure(AuthenticationManagerBuilder auth) throws Exception {
		auth.userDetailsService(userDetailsService).passwordEncoder(passwordEncoder());
	}

	@Bean
	@Override
	public AuthenticationManager authenticationManagerBean() throws Exception
	{
		return super.authenticationManagerBean();
	}

	@Override
	public void configure(HttpSecurity http) throws Exception {
		http.csrf().disable()
		.authorizeRequests().antMatchers("/helloadmin").hasRole("ADMIN")
		.antMatchers("/hellouser").hasAnyRole("USER","ADMIN")
		.antMatchers("/authenticate", "/register").permitAll().anyRequest().authenticated()
		.and().exceptionHandling().authenticationEntryPoint(jwtAuthenticationEntryPoint).
		and().sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS).
		and().addFilterBefore(customJwtAuthenticationFilter, UsernamePasswordAuthenticationFilter.class);
	}
}
We are done with the changes. If we now send a POST request to the register url with User details, they will be saved in the database-

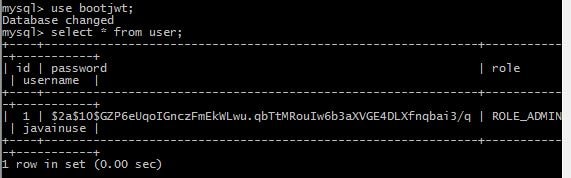

Check in MySQL, the user will be saved.

Use MySQL User Table for authenticating users

Modify UserRepository to add method findByUsername(String username) to get the User based on username-
package com.javainuse.springsecurity.repository;

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

import com.javainuse.springbootsecurity.model.DAOUser;


@Repository
public interface UserRepository extends JpaRepository<DAOUser, Long> {
	DAOUser findByUsername(String username);
}
Finally in the CustomUserDetailsService we will make use of the findByUsername method to fetch the user details from MySQL Database
package com.javainuse.springbootsecurity.config;

import java.util.Arrays;
import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

import com.javainuse.springbootsecurity.model.DAOUser;
import com.javainuse.springbootsecurity.model.UserDTO;
import com.javainuse.springbootsecurity.repository.UserRepository;

@Service
public class CustomUserDetailsService implements UserDetailsService {

	@Autowired
	private UserRepository userDao;

	@Autowired
	private PasswordEncoder passwordEncoder;

	@Override
	public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
		List<SimpleGrantedAuthority> roles = null;

		DAOUser user = userDao.findByUsername(username);
		if (user != null) {
			roles = Arrays.asList(new SimpleGrantedAuthority(user.getRole()));
			return new User(user.getUsername(), user.getPassword(), roles);
		}
		throw new UsernameNotFoundException("User not found with the name " + username);
	}

	public DAOUser save(UserDTO user) {
		DAOUser newUser = new DAOUser();
		newUser.setUsername(user.getUsername());
		newUser.setPassword(passwordEncoder.encode(user.getPassword()));
		newUser.setRole(user.getRole());
		return userDao.save(newUser);
	}

}

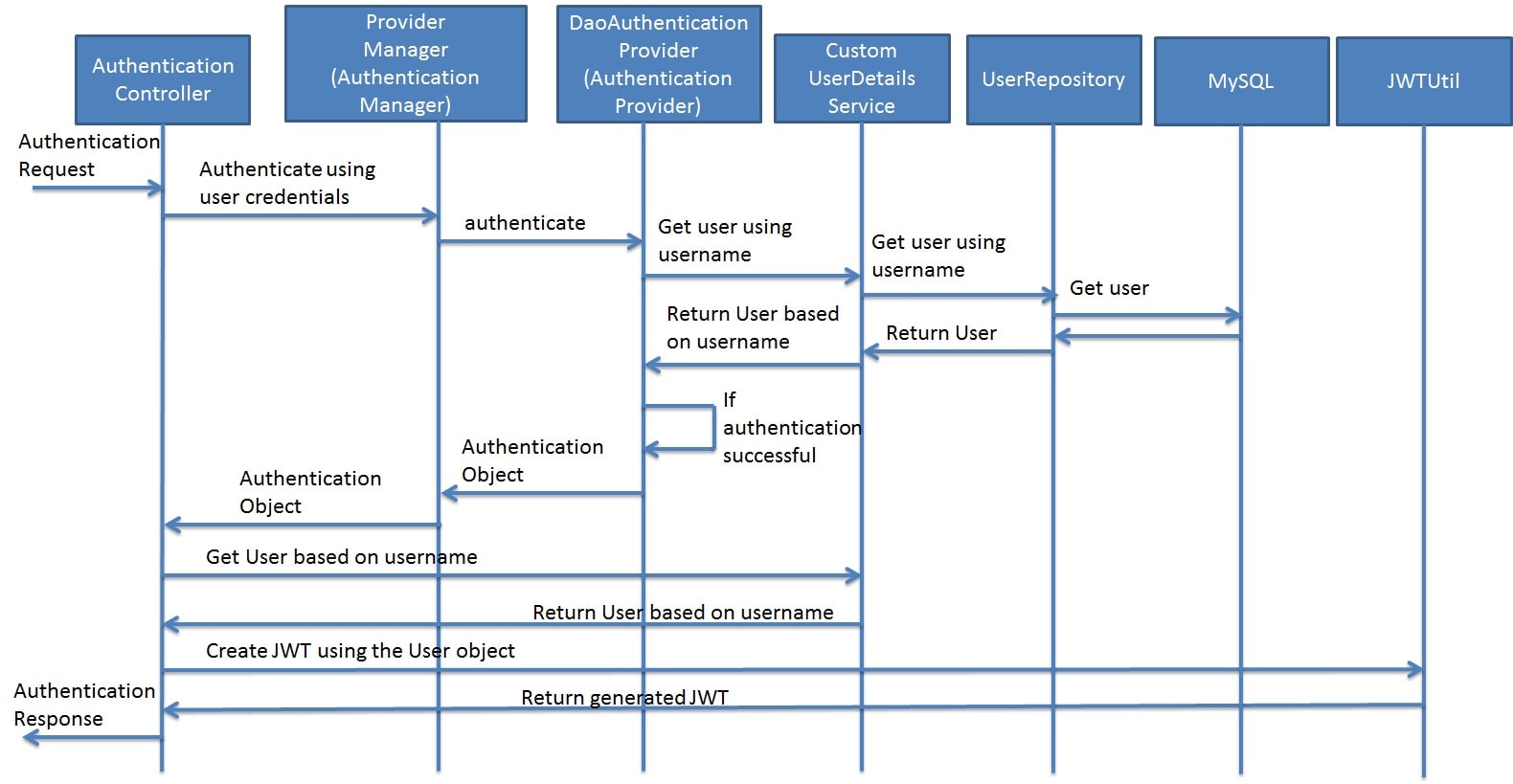

So now our Authentication flow will be as follows-

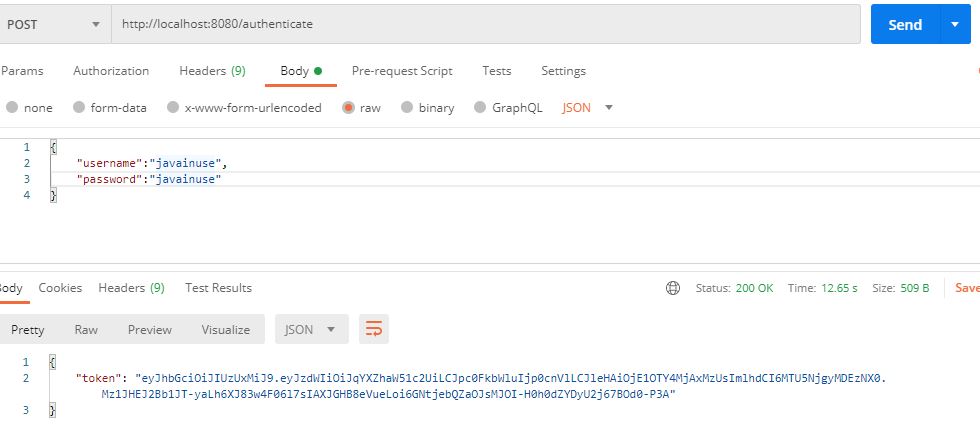

Now start our application - If we now go to localhost:8080/authenticate and pass the username and password in the body, the JWT will be generated.

We can decode the generated JWT and check it's contents

Download Source Code

Download it -
Spring Boot + JWT + MySQL
