Create the AuthenticationResponse class which is a model class to return the token on
successful authentication
package com.javainuse.springsecurity.model;
public class AuthenticationResponse {
private String token;
public AuthenticationResponse(String token) {
this.token = token;
}
public AuthenticationResponse() {
}
public String getToken() {
return token;
}
public void setToken(String token) {
this.token = token;
}
}
Next create a AuthenticationController class which will expose a POST REST API
to take username and
password from the user and if user is authenticated then return a JSON Web Token.
For Authentication we will be making use of the AuthenticationManager which we have
already configured in the SecurityConfiguration.
This flow is quite similar to the
previous
Spring
Boot Security Project where
we has seen the Spring Boot Security Architecture and the Authentication Manager authenticates
the incoming HTTP request.
Once the authentication is successful we will be making a call to the generateToken method
of the JwtUtil class which will create the token. This token will be returned back to the user.
package com.javainuse.springsecurity.controller;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.DisabledException;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
import com.javainuse.springsecurity.config.CustomUserDetailsService;
import com.javainuse.springsecurity.config.JwtUtil;
import com.javainuse.springsecurity.model.AuthenticateRequest;
import com.javainuse.springsecurity.model.AuthenticationResponse;
@RestController
public class AuthenticationController {
@Autowired
private AuthenticationManager authenticationManager;
@Autowired
private CustomUserDetailsService userDetailsService;
@Autowired
private JwtUtil jwtTokenUtil;
@RequestMapping(value = "/authenticate", method = RequestMethod.POST)
public ResponseEntity<?> createAuthenticationToken(@RequestBody AuthenticateRequest authenticationRequest)
throws Exception {
try {
authenticationManager.authenticate(new UsernamePasswordAuthenticationToken(
authenticationRequest.getUsername(), authenticationRequest.getPassword()));
} catch (DisabledException e) {
throw new Exception("USER_DISABLED", e);
} catch (BadCredentialsException e) {
throw new Exception("INVALID_CREDENTIALS", e);
}
final UserDetails userDetails = userDetailsService.loadUserByUsername(authenticationRequest.getUsername());
final String token = jwtTokenUtil.generateToken(userDetails);
return ResponseEntity.ok(new AuthenticationResponse(token));
}
}
Finally in the Spring Security Configuration
- Allow the /authenticate url without any
authentication
-
We have already configured the Authentication Manager using the AuthenticationManagerBuilder.
But Spring Security needs us to explicitly create the AuthenticationManager Bean.
package com.javainuse.springbootsecurity.config;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
@Configuration
@EnableWebSecurity
public class SpringSecurityConfiguration extends WebSecurityConfigurerAdapter{
@Autowired
CustomUserDetailsService userDetailsService;
public PasswordEncoder passwordEncoder(){
return new BCryptPasswordEncoder();
}
@Override
public void configure(AuthenticationManagerBuilder auth) throws Exception {
auth.userDetailsService(userDetailsService).passwordEncoder(passwordEncoder());
}
@Bean
@Override
public AuthenticationManager authenticationManagerBean() throws Exception {
return super.authenticationManagerBean();
}
@Override
public void configure(HttpSecurity http) throws Exception {
http.csrf().disable()
.authorizeRequests().antMatchers("/helloadmin").hasRole("ADMIN")
.antMatchers("/hellouser").hasAnyRole("USER","ADMIN")
.antMatchers("/authenticate").permitAll().anyRequest().authenticated()
.and().httpBasic();
}
}

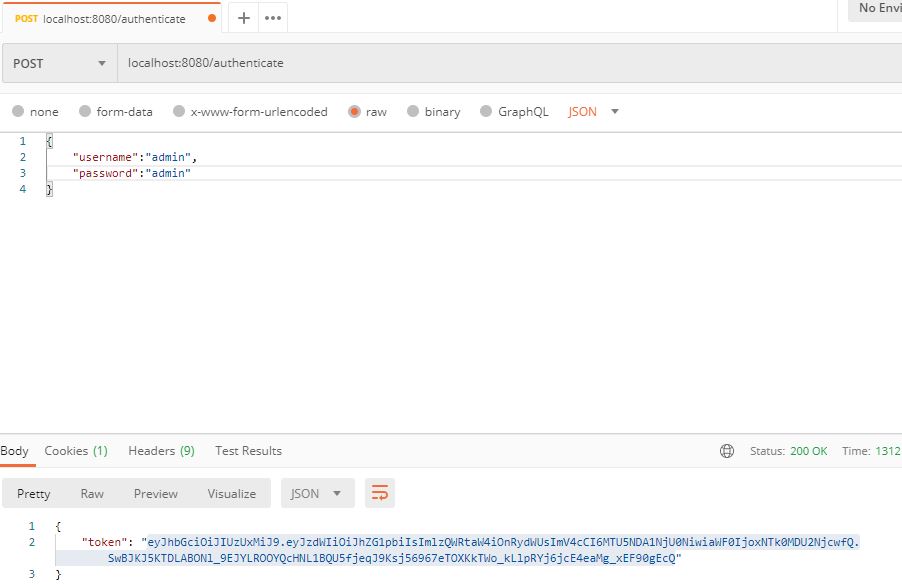

Start the application and test the POST request /authenticate url-
We can go to the
online JWT decoder and check the JWT details-
Validation and Authorization using JWT
We will now be using the generated JWT to authorize user to perform operations.
In
previous tutorial we have seen that any incoming request is first intercepted by
Filters which perform authentication and authorization.
One example of such filter is the BasicAuthenticationFilter which is a type of OncePerRequestFilter.
We will now be writing our own CustomJWTAuthenticationFilter which will also be type of
OncePerRequestFilter.

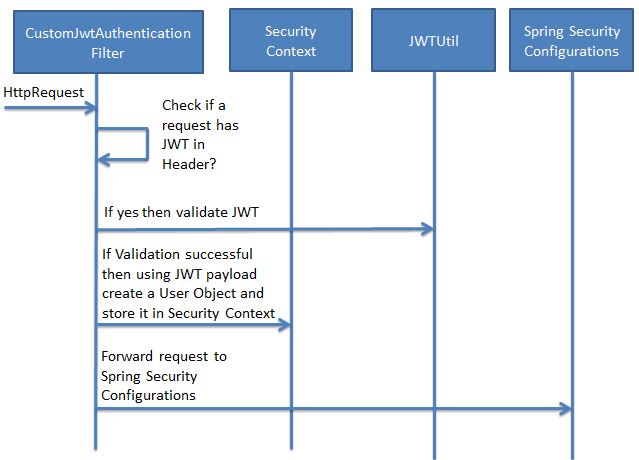

This CustomJWTAuthenticationFilter will intercept the incoming request and check if it contains
a JSON Web Token(JWT). If JWT is present it will then call the validate method of
the JWTUtil class to validate the token. If the validation is successful, then it will
create a User Object using the JWT payload and store this object in the Security context, which indicates
that the current user is authenticated.
We will first be adding the some more utility methods like validateToken to the JWTUtil class.
package com.javainuse.springbootsecurity.config;
import java.util.Arrays;
import java.util.Collection;
import java.util.Date;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.stereotype.Service;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.ExpiredJwtException;
import io.jsonwebtoken.Jws;
import io.jsonwebtoken.JwsHeader;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.MalformedJwtException;
import io.jsonwebtoken.SignatureAlgorithm;
import io.jsonwebtoken.SignatureException;
import io.jsonwebtoken.UnsupportedJwtException;
@Service
public class JwtUtil {
private String secret;
private int jwtExpirationInMs;
@Value("${jwt.secret}")
public void setSecret(String secret) {
this.secret = secret;
}
@Value("${jwt.expirationDateInMs}")
public void setJwtExpirationInMs(int jwtExpirationInMs) {
this.jwtExpirationInMs = jwtExpirationInMs;
}
// generate token for user
public String generateToken(UserDetails userDetails) {
Map<String, Object> claims = new HashMap<>();
Collection<? extends GrantedAuthority> roles = userDetails.getAuthorities();
if (roles.contains(new SimpleGrantedAuthority("ROLE_ADMIN"))) {
claims.put("isAdmin", true);
}
if (roles.contains(new SimpleGrantedAuthority("ROLE_USER"))) {
claims.put("isUser", true);
}
return doGenerateToken(claims, userDetails.getUsername());
}
private String doGenerateToken(Map<String, Object> claims, String subject) {
return Jwts.builder().setClaims(claims).setSubject(subject).setIssuedAt(new Date(System.currentTimeMillis()))
.setExpiration(new Date(System.currentTimeMillis() + jwtExpirationInMs)).signWith(SignatureAlgorithm.HS512, secret).compact();
}
public boolean validateToken(String authToken) {
try {
// Jwt token has not been tampered with
Jws<Claims> claims = Jwts.parser().setSigningKey(secret).parseClaimsJws(authToken);
return true;
} catch (SignatureException | MalformedJwtException | UnsupportedJwtException | IllegalArgumentException ex) {
throw new BadCredentialsException("INVALID_CREDENTIALS", ex);
} catch (ExpiredJwtException ex) {
throw new ex(header, claims, "Token has Expired", ex);
}
}
public String getUsernameFromToken(String token) {
Claims claims = Jwts.parser().setSigningKey(secret).parseClaimsJws(token).getBody();
return claims.getSubject();
}
public List<SimpleGrantedAuthority> getRolesFromToken(String authToken) {
List<SimpleGrantedAuthority> roles = null;
Claims claims = Jwts.parser().setSigningKey(secret).parseClaimsJws(authToken).getBody();
Boolean isAdmin = claims.get("isAdmin", Boolean.class);
Boolean isUser = claims.get("isUser", Boolean.class);
if (isAdmin != null && isAdmin == true) {
roles = Arrays.asList(new SimpleGrantedAuthority("ROLE_ADMIN"));
}
if (isUser != null && isUser == true) {
roles = Arrays.asList(new SimpleGrantedAuthority("ROLE_USER"));
}
return roles;
}
}
Create the CustomJwtAuthenticationFilter class will be type of
OncePerRequestFilter. This class will intercept the requests and
-
Check if header contains a JWT. If no then let the usual Spring Security Flow take place.
-
If the header contains a JWT then it will validate the token. On successful validation
it will add the User Object in the Spring Context to indicate that the user
can be authorized to perform operation.
package com.javainuse.springbootsecurity.config;
import java.io.IOException;
import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpServletResponseWrapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.web.authentication.WebAuthenticationDetailsSource;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;
import org.springframework.web.filter.OncePerRequestFilter;
import io.jsonwebtoken.ExpiredJwtException;
@Component
public class CustomJwtAuthenticationFilter extends OncePerRequestFilter {
@Autowired
private JwtUtil jwtTokenUtil;
@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
throws ServletException, IOException {
// JWT Token is in the form "Bearer token". Remove Bearer word and
// get only the Token
String jwtToken = extractJwtFromRequest(request);
if (StringUtils.hasText(jwtToken) && jwtTokenUtil.validateToken(jwtToken)) {
UserDetails userDetails = new User(jwtTokenUtil.getUsernameFromToken(jwtToken), "",
jwtTokenUtil.getRolesFromToken(jwtToken));
UsernamePasswordAuthenticationToken usernamePasswordAuthenticationToken = new UsernamePasswordAuthenticationToken(
userDetails, null, userDetails.getAuthorities());
// After setting the Authentication in the context, we specify
// that the current user is authenticated. So it passes the
// Spring Security Configurations successfully.
SecurityContextHolder.getContext().setAuthentication(usernamePasswordAuthenticationToken);
} else {
System.out.println("Cannot set the Security Context");
}
chain.doFilter(request, response);
}
private String extractJwtFromRequest(HttpServletRequest request) {
String bearerToken = request.getHeader("Authorization");
if (StringUtils.hasText(bearerToken) && bearerToken.startsWith("Bearer ")) {
return bearerToken.substring(7, bearerToken.length());
}
return null;
}
}
Create JwtAuthenticationEntryPoint class.
This class is used to return a 401 unauthorized error to clients that try to access a protected resource without proper authentication.
It implements Spring Security AuthenticationEntryPoint interface. In this class we will
be creating the HttpResponse which should be returned to the user in case of an exception.
package com.javainuse.springbootsecurity.config;
import java.io.IOException;
import java.util.Collections;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.http.MediaType;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.AuthenticationEntryPoint;
import org.springframework.stereotype.Component;
import com.fasterxml.jackson.databind.ObjectMapper;
@Component
public class JwtAuthenticationEntryPoint implements AuthenticationEntryPoint {
@Override
public void commence(HttpServletRequest request, HttpServletResponse response,
AuthenticationException authException) throws IOException, ServletException {
response.setStatus(HttpServletResponse.SC_UNAUTHORIZED);
response.setContentType(MediaType.APPLICATION_JSON_VALUE);
String message;
if (authException.getCause() != null) {
message = authException.getCause().toString() + " " + authException.getMessage();
} else {
message = authException.getMessage();
}
byte[] body = new ObjectMapper().writeValueAsBytes(Collections.singletonMap("error", message));
response.getOutputStream().write(body);
}
}
Modify Security Configuration-
-
Remove HttpBasic Security, as we will be using JWT for authorization.
-
Configure Http Security to make use of the CustomJwtAuthenticationFilter and the JwtAuthenticationEntryPoint.
package com.javainuse.springbootsecurity.config;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
@Configuration
@EnableWebSecurity
public class SpringSecurityConfiguration extends WebSecurityConfigurerAdapter{
@Autowired
CustomUserDetailsService userDetailsService;
@Autowired
private CustomJwtAuthenticationFilter customJwtAuthenticationFilter;
@Autowired
private JwtAuthenticationEntryPoint unauthorizedHandler;
public PasswordEncoder passwordEncoder(){
return new BCryptPasswordEncoder();
}
@Override
public void configure(AuthenticationManagerBuilder auth) throws Exception {
auth.userDetailsService(userDetailsService).passwordEncoder(passwordEncoder());
}
@Bean
@Override
public AuthenticationManager authenticationManagerBean() throws Exception {
return super.authenticationManagerBean();
}
@Override
public void configure(HttpSecurity http) throws Exception {
http.csrf().disable()
.authorizeRequests().antMatchers("/helloadmin").hasRole("ADMIN")
.antMatchers("/hellouser").hasAnyRole("USER","ADMIN")
.antMatchers("/authenticate").permitAll().anyRequest().authenticated()
//if any exception occurs call this
.and().exceptionHandling()
.authenticationEntryPoint(unauthorizedHandler).and().
// make sure we use stateless session; session won't be used to
// store user's state.
sessionManagement()
.sessionCreationPolicy(SessionCreationPolicy.STATELESS);
// Add a filter to validate the tokens with every request
http.addFilterBefore(customJwtAuthenticationFilter,
UsernamePasswordAuthenticationFilter.class);
}
}
Run the application.
-

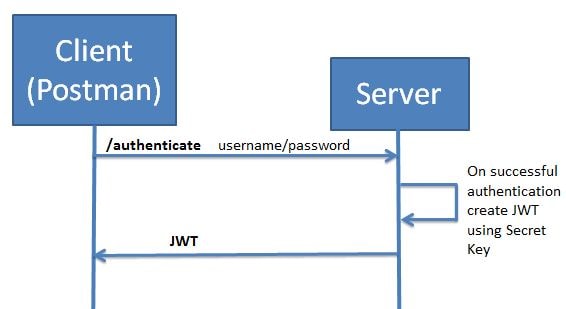

Create the token using the url localhost:8080/authenticate
-

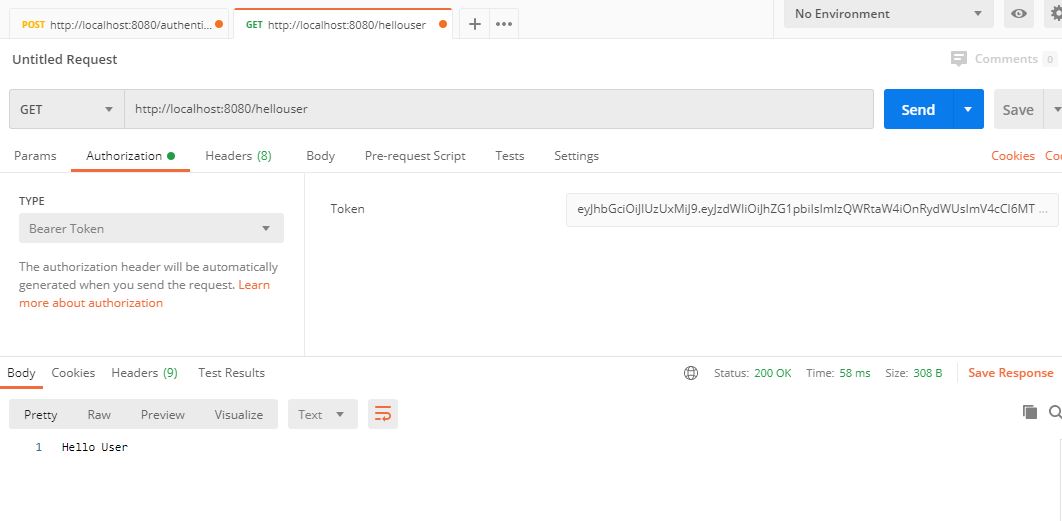

Use this token to get response from the url localhost:8080/hellouser
If we now make the jwt.expirationDateInMs property in the application.properties as 0 and
create a token, then the created JWT should be expired as soon as it is created.
Use this token to access the url localhost:8080/hellouser

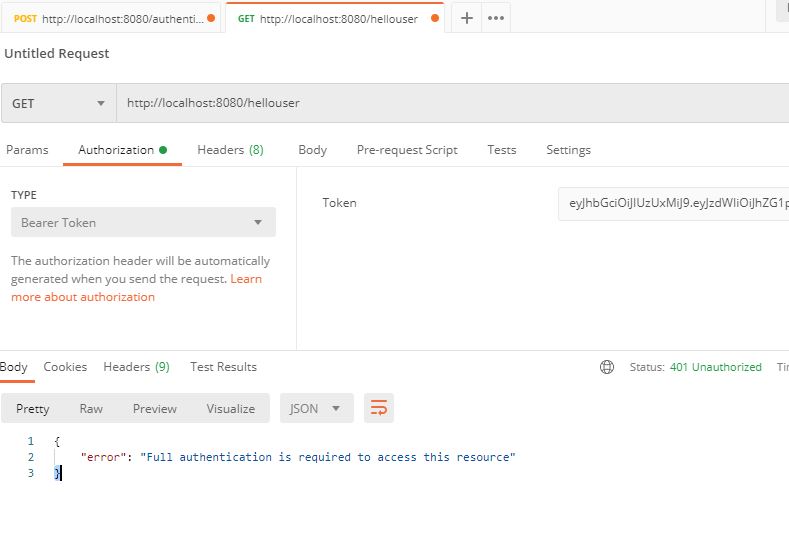

We can see that instead of JWT exception we still get the exception that "Full Authentication is required".
This is because of Spring Security issue/bug. We will next be some changes to the code
so that the user gets the exception informing that the JWT has expired.
Configuring and testing JWT Expiration Date
If the JWTUtil class throws the JWTExpiration Exception or the Bad Credentials Exception,
we will be catching it in the CustomJwtAuthenticationFilter and saving it as a Request Attribute.
package com.javainuse.springbootsecurity.config;
import java.io.IOException;
import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpServletResponseWrapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.web.authentication.WebAuthenticationDetailsSource;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;
import org.springframework.web.filter.OncePerRequestFilter;
import io.jsonwebtoken.ExpiredJwtException;
@Component
public class CustomJwtAuthenticationFilter extends OncePerRequestFilter {
@Autowired
private JwtUtil jwtTokenUtil;
@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
throws ServletException, IOException {
try {
// JWT Token is in the form "Bearer token". Remove Bearer word and
// get only the Token
String jwtToken = extractJwtFromRequest(request);
if (StringUtils.hasText(jwtToken) && jwtTokenUtil.validateToken(jwtToken)) {
UserDetails userDetails = new User(jwtTokenUtil.getUsernameFromToken(jwtToken), "",
jwtTokenUtil.getRolesFromToken(jwtToken));
UsernamePasswordAuthenticationToken usernamePasswordAuthenticationToken = new UsernamePasswordAuthenticationToken(
userDetails, null, userDetails.getAuthorities());
// After setting the Authentication in the context, we specify
// that the current user is authenticated. So it passes the
// Spring Security Configurations successfully.
SecurityContextHolder.getContext().setAuthentication(usernamePasswordAuthenticationToken);
} else {
System.out.println("Cannot set the Security Context");
}
} catch (ExpiredJwtException ex) {
request.setAttribute("exception", ex);
throw ex;
} catch (BadCredentialsException ex) {
request.setAttribute("exception", ex);
throw ex;
}
chain.doFilter(request, response);
}
private String extractJwtFromRequest(HttpServletRequest request) {
String bearerToken = request.getHeader("Authorization");
if (StringUtils.hasText(bearerToken) && bearerToken.startsWith("Bearer ")) {
return bearerToken.substring(7, bearerToken.length());
}
return null;
}
}
Later in the JwtAuthenticationEntryPoint class we will be checking if the request has
an attribute named exception. If it does have it then we will be making use of it
to create the response object.
package com.javainuse.springbootsecurity.config;
import java.io.IOException;
import java.util.Collections;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.http.MediaType;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.AuthenticationEntryPoint;
import org.springframework.stereotype.Component;
import com.fasterxml.jackson.databind.ObjectMapper;
@Component
public class JwtAuthenticationEntryPoint implements AuthenticationEntryPoint {
@Override
public void commence(HttpServletRequest request, HttpServletResponse response,
AuthenticationException authException) throws IOException, ServletException {
response.setStatus(HttpServletResponse.SC_UNAUTHORIZED);
response.setContentType(MediaType.APPLICATION_JSON_VALUE);
String message;
// Check if the request as any exception that we have stored in Request
final Exception exception = (Exception) request.getAttribute("exception");
// If yes then use it to create the response message else use the authException
if (exception != null) {
byte[] body = new ObjectMapper().writeValueAsBytes(Collections.singletonMap("cause", exception.toString()));
response.getOutputStream().write(body);
} else {
if (authException.getCause() != null) {
message = authException.getCause().toString() + " " + authException.getMessage();
} else {
message = authException.getMessage();
}
byte[] body = new ObjectMapper().writeValueAsBytes(Collections.singletonMap("error", message));
response.getOutputStream().write(body);
}
}
}

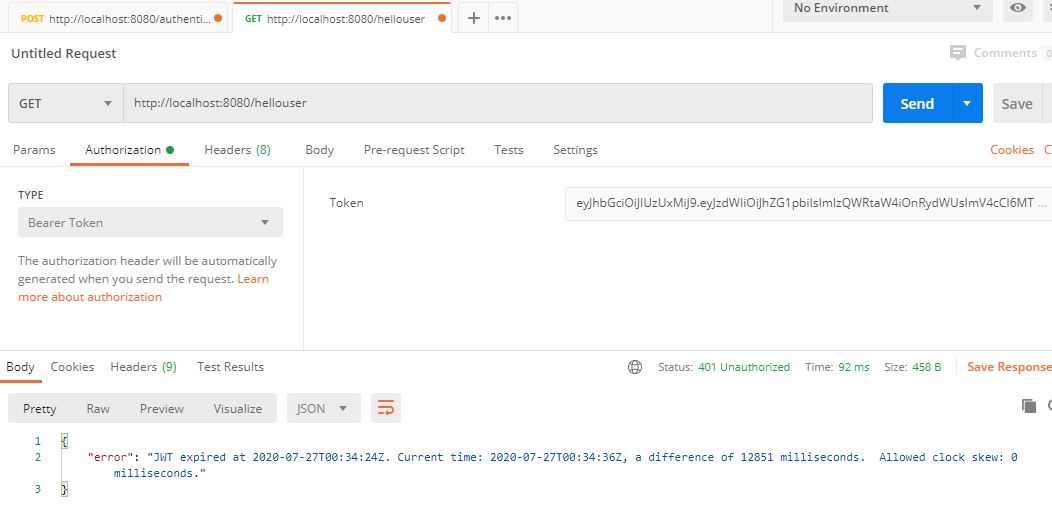

If we now run the application and use an expired JWT we get the following custom exception -
Download Source Code
Download it -
Spring Boot + JWT
