Deploying Multiple Spring Boot Microservices to Docker using Docker Networking

Docker Tutorial - Table Of Contents

Docker Deploying Spring Based WAR Application to Docker Deploying Spring Based JAR Application to Docker Deploying Multiple Spring Boot Microservices using Docker Networking Deploying Multiple Spring Boot Microservices using Docker Compose Deploying Spring Boot + MYSQL Application to Docker Publishing Docker Image to DockerHub Deploy Docker Swarm services using Play With Docker Deploy Docker Swarm services using Docker Stack Deploy Docker Swarm services to multiple AWS EC2 instances Docker Cheat Sheet

Video

This tutorial is explained in the below Youtube Video.

In a previous docker tutorial we saw how to deploy a single Spring Boot Microservice to Docker Container. But suppose the requirement is such that we may need to deploy multiple microservices to Docker Container. For example we have the following microservices that we have defined in previous tutorial.

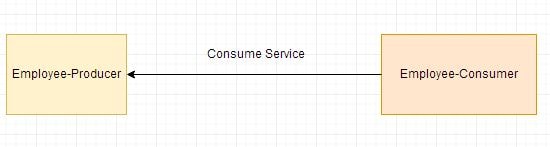

sprcloud_1-5
As the name suggests employee-producer will be exposing REST APIs which will be consumed by the employee-consumer.
The way Docker has been designed such that a Docker Container should have only a single service running. Again we can have multiple services running in docker using some workarounds but this will not be a good design. So we will be deploying the two microservices employee-producer and employee-consumer to two different containers and then have them interact with each other.
Docker Networking Tutorial

In order to achieve this will have to make use of the docker networking commands.

Lets Begin-

Lets begin with the implementation part. Import the two projects in eclipse.
  • Employee Producer -

  • The project we will as follows-
    docker-war
    The docker file is as follows-
    From openjdk:8
    copy ./target/employee-producer-0.0.1-SNAPSHOT.jar employee-producer-0.0.1-SNAPSHOT.jar
    CMD ["java","-jar","employee-producer-0.0.1-SNAPSHOT.jar"]


    docker-dockerhub

    Open the terminal and start the docker
    systemctl start docker


    docker-start
Now open the terminal and go to the Spring Boot employee-producer project folder.
Next we will build an image with the name producer.
docker image build -t employee-producer .

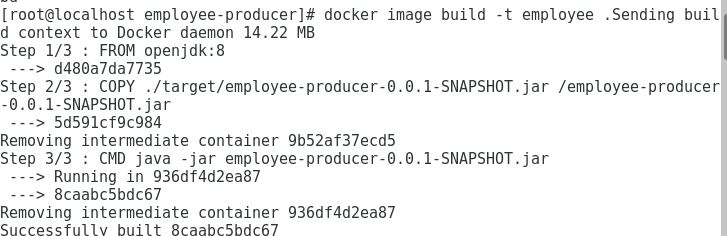

docker-image-build
Next we will run the above image as a container named producer. Also we will be publishing the docker port 8080 to centos port 8080.
docker container run --name producer -p 8080:8080 -d employee-producer

docker-employee-build

docker-container-running2

So our employee container has started. We can test this by going to localhost:8080/employee, we will see that our application is deployed successfully.
docker-boot-container-tomcat
  • Employee Consumer -

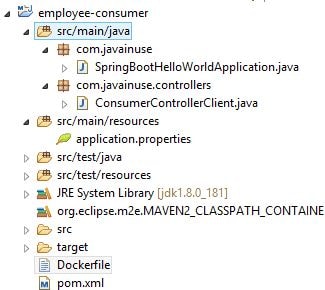

    docker-boot-employee
    We have created and started a container named producer where we have deployed the employee-producer service.
    So the only change we will be making is while consuming the employee producer service we will be using this container named producer instead of localhost:8080.
    So in the ConsumerControllerClient class we will be having the base url as http://producer:8080/employee instead of http://localhost:8080/employee.
    package com.javainuse.controllers;

    import java.io.IOException;
    import org.springframework.http.HttpEntity;
    import org.springframework.http.HttpHeaders;
    import org.springframework.http.HttpMethod;
    import org.springframework.http.MediaType;
    import org.springframework.http.ResponseEntity;
    import org.springframework.web.client.RestClientException;
    import org.springframework.web.client.RestTemplate;

    public class ConsumerControllerClient {

    	public void getEmployee() throws RestClientException, IOException {

    		String baseUrl = "http://producer:8080/employee";
    		RestTemplate restTemplate = new RestTemplate();
    		ResponseEntity<String> response=null;
    		try{
    		response=restTemplate.exchange(baseUrl,
    				HttpMethod.GET, getHeaders(),String.class);
    		}catch (Exception ex)
    		{
    			System.out.println(ex);
    		}
    		System.out.println(response.getBody());
    	}

    	private static HttpEntity<?> getHeaders() throws IOException {
    		HttpHeaders headers = new HttpHeaders();
    		headers.set("Accept", MediaType.APPLICATION_JSON_VALUE);
    		return new HttpEntity<>(headers);
    	}
    }

    The docker file is as follows-
    From openjdk:8
    copy ./target/employee-consumer-0.0.1-SNAPSHOT.jar employee-consumer-0.0.1-SNAPSHOT.jar
    CMD ["java","-jar","employee-consumer-0.0.1-SNAPSHOT.jar"]


    docker-dockerhub

    Open the terminal and go to the Spring Boot employee consumer project folder.
    Next we will build an image with the name consumer.
    docker image build -t employee-consumer .

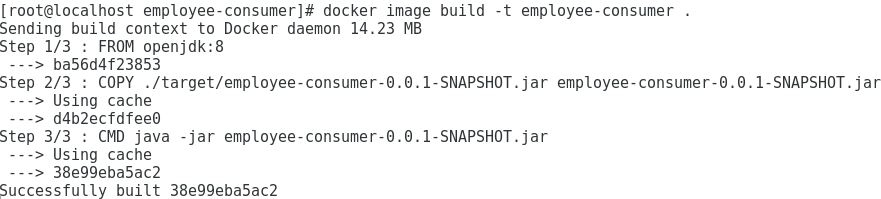

    docker-consumer-build
    Next we will run the above image as a container named consumer.
    docker container run --name consumer -d employee-consumer


    docker-consumer-run
    Next check the logs using
    docker container logs consumer

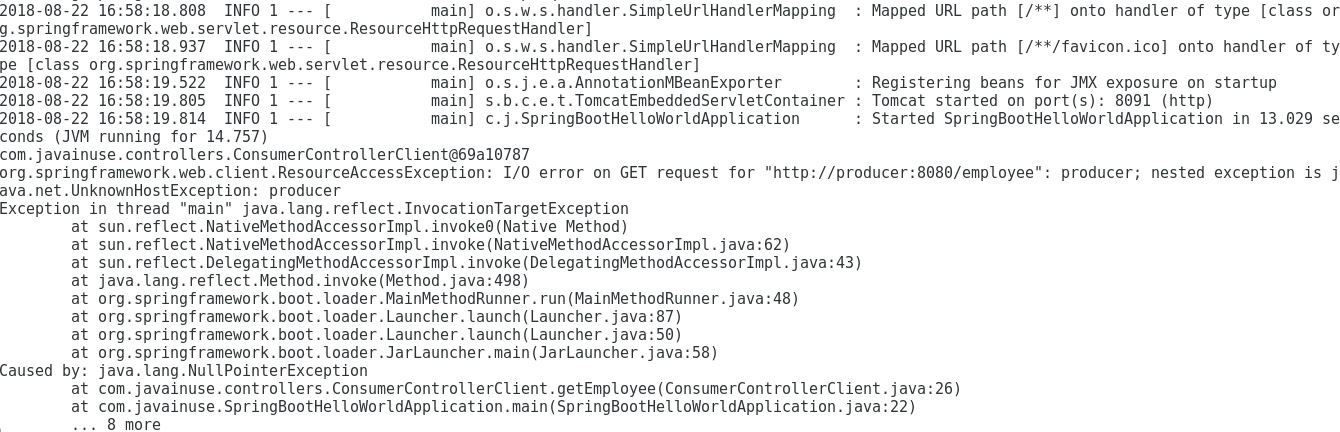

    docker-consumer-logs

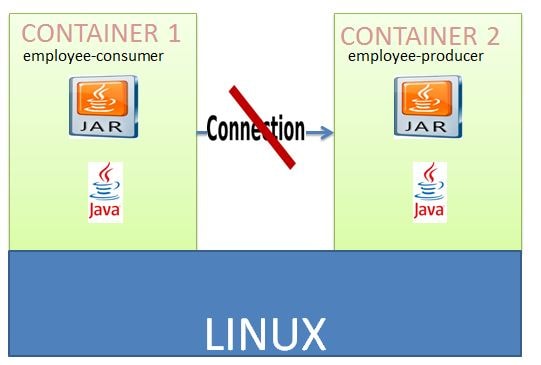

    Here we can see that the container named consumer is not able to communicate with the container named producer.

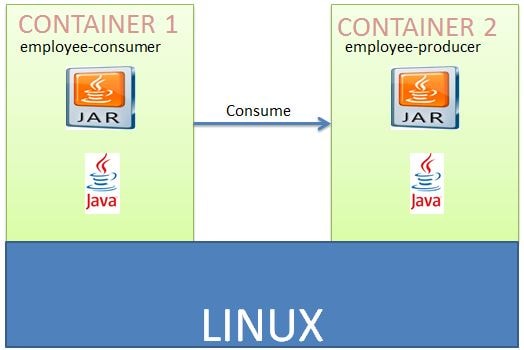

    docker-consumer-not-communicate
    So we are getting a null pointer exception.
  • Inter Docker Container Communication Using Docker Networking

    We will be using Docker Networking to allow multiple containers to interact with each other.

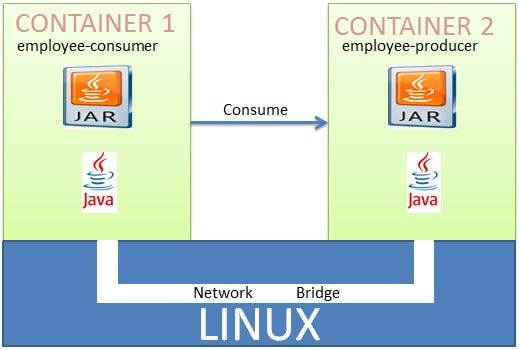

    docker-networking-tutorial
    We will need to create our own network and add both the employee-producer and employee-consumer services to it. We will stop and remove the existing docker containers named consumer and producer.
    docker-consumer-remove

    docker-producer-remove

    Lets first check the available networks
    docker network ls


    docker-network-list
    Next we will create our own network will be of type bridge
    docker network create consumer-producer


    docker-create-network
    Lets start the employee producer container on the newly created network.
    docker container run --network consumer-producer --name producer -p 8080:8080 -d employee-producer


    docker-create-network-producer
    Lets start the employee consumer+ container on the newly created network.
    docker container run --network consumer-producer --name consumer -d employee-consumer


    docker-create-network-consumer

    Lets check the consumer container logs-
    docker container logs consumer

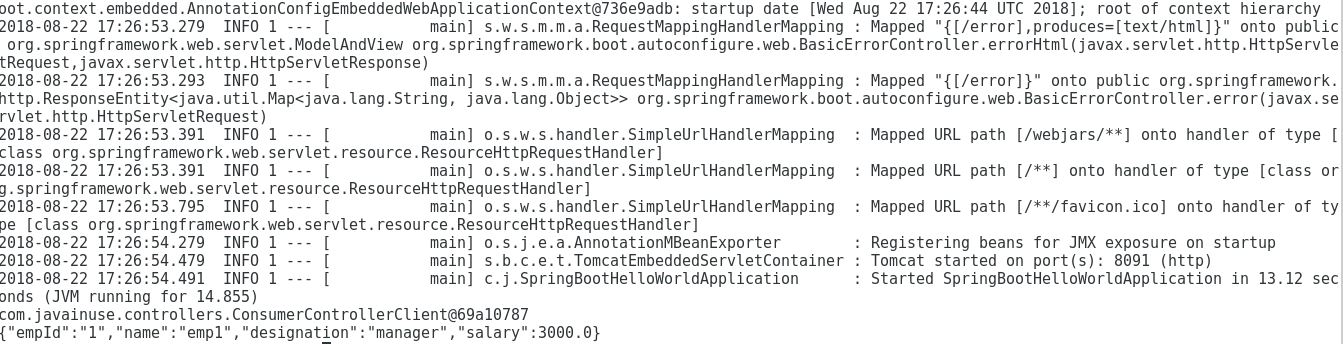

    docker-network-logs

    Download Source Code

    Download it - Employee Consumer Docker Networking Module
    Download it - Employee Producer Docker Networking Module
