Apache Camel - Marshalling/Unmarshalling XML/JSON Data

In the previous example apache camel activemq example we created a simple example to read data from a file and send it to the queue. In this example we will read xml data, unmarshal it to a java object, modify it and then send it in json format to the queue.

Apache Camel - Table of Contents

File Transfer Using Java DSL Apache Camel Apache Camel Java DSL + Spring Integration Hello World Example Apache Camel Exception Handling Using Simple Example Apache Camel Redelivery policy using example Integrate Apache Camel and ActiveMQ EIP patterns using Apache Camel Apache Camel Tutorial- Integrate Spring Boot+ Apache Camel Apache Camel Tutorial- Integrate with MySQL DB using SQL query Apache Camel EIP - Splitter and Aggregator pattern Apache Camel Unit Testing Apache Camel + Spring + Quartz Hello World Example Camel application deployment on JBoss Fuse Apache Camel + JAX-RS REST Webservice Apache Camel + CXFRS REST Webservice Apache Camel Routing Slip EIP Pattern Apache Camel Dynamic Router Pattern Apache Camel Load Balancer EIP Pattern Apache Camel Interceptors Apache Camel + Kafka Hello World Example Apache Camel - Marshalling/Unmarshalling XML/JSON Data Example

Video

This tutorial is explained in the below Youtube Video.

Lets Begin

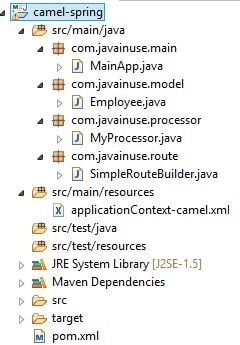

We will create Eclipse maven project as follows-

Apache Camel - Marshalling/Unmarshalling XML/JSON Data
Our pom file will be as follows-
 <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.javainuse</groupId>
	<artifactId>camel-spring</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<dependencies>
		<dependency>
			<groupId>org.apache.camel</groupId>
			<artifactId>camel-core</artifactId>
			<version>2.14.1</version>
		</dependency>

		<dependency>
			<groupId>org.apache.camel</groupId>
			<artifactId>camel-jms</artifactId>
			<version>2.14.1</version>
		</dependency>

		<dependency>
			<groupId>org.apache.activemq</groupId>
			<artifactId>activemq-camel</artifactId>
			<version>5.10.1</version>
		</dependency>

		<dependency>
			<groupId>org.apache.activemq</groupId>
			<artifactId>activemq-broker</artifactId>
			<version>5.10.1</version>
		</dependency>

		<dependency>
			<groupId>org.apache.activemq</groupId>
			<artifactId>activemq-client</artifactId>
			<version>5.10.1</version>
		</dependency>

		<dependency>
			<groupId>org.apache.activemq</groupId>
			<artifactId>activemq-pool</artifactId>
			<version>5.10.1</version>
		</dependency>

		<dependency>
			<groupId>org.apache.camel</groupId>
			<artifactId>camel-jackson</artifactId>
			<version>2.14.1</version>
		</dependency>


		<dependency>
			<groupId>org.apache.camel</groupId>
			<artifactId>camel-spring</artifactId>
			<version>2.13.0</version>
		</dependency>

		<dependency>
			<groupId>org.apache.camel</groupId>
			<artifactId>camel-jaxb</artifactId>
			<version>2.13.0</version>
		</dependency>

	</dependencies>
</project>
We will be unmarshalling, marshalling object of the Employee class.
package com.javainuse.model;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlRootElement;

@XmlRootElement(name = "employee")
@XmlAccessorType(XmlAccessType.FIELD)
public class Employee {

	private String empName;
	private int empId;

	public String getEmpName() {
		return empName;
	}

	public void setEmpName(String empName) {
		this.empName = empName;
	}

	public int getEmpId() {
		return empId;
	}

	public void setEmpId(int empId) {
		this.empId = empId;
	}
}
Next we create a class to construct a Camel Route. A Route is like a instruction definition to Camel on how to move your messages from one point to another. We are going to create SimpleRouteBuilder.java file that will move files from c://inputFolder to ActiveMQ. Also we will be unmarshalling the input, modify it and then marshal it and send it to the queue. Here we are making use of the JMS component which we will define in the main class later.
package com.javainuse.route;

import javax.xml.bind.JAXBContext;

import org.apache.camel.Exchange;
import org.apache.camel.Processor;
import org.apache.camel.builder.RouteBuilder;
import org.apache.camel.component.jackson.JacksonDataFormat;
import org.apache.camel.converter.jaxb.JaxbDataFormat;

import com.javainuse.model.Employee;
import com.javainuse.processor.MyProcessor;

public class SimpleRouteBuilder extends RouteBuilder {

	@Override
	public void configure() throws Exception {

		// XML Data Format
		JaxbDataFormat xmlDataFormat = new JaxbDataFormat();
		JAXBContext con = JAXBContext.newInstance(Employee.class);
		xmlDataFormat.setContext(con);

		// JSON Data Format
		JacksonDataFormat jsonDataFormat = new JacksonDataFormat(Employee.class);

		from("file:C:/inputFolder").doTry().unmarshal(xmlDataFormat).
		process(new MyProcessor()).marshal(jsonDataFormat).
		to("jms:queue:javainuse").doCatch(Exception.class).process(new Processor() {
					public void process(Exchange exchange) throws Exception {
						Exception cause = exchange.getProperty(Exchange.EXCEPTION_CAUGHT, Exception.class);
						System.out.println(cause);
					}
				});
	}
}
Next we define the Camel Processor class where we will be modifying the unmarshalled object.
package com.javainuse.processor;

import org.apache.camel.Exchange;
import org.apache.camel.Processor;

import com.javainuse.model.Employee;

public class MyProcessor implements Processor {

	public void process(Exchange exchange) throws Exception {
		Employee employee = exchange.getIn().getBody(Employee.class);
		employee.setEmpName("JavaInUse Rocks");
		exchange.getIn().setBody(employee);
	}

}
When Camel is started, it creates a CamelContext object that contains the definition of the Route to be started. Below we create default camel context and load the route created in SimpleRouteBuilder.
package com.javainuse;

import javax.jms.ConnectionFactory;
import org.apache.activemq.ActiveMQConnectionFactory;
import org.apache.camel.CamelContext;
import org.apache.camel.component.jms.JmsComponent;
import org.apache.camel.impl.DefaultCamelContext;

public class MainApp {

    public static void main(String[] args) {
        SimpleRouteBuilder routeBuilder = new SimpleRouteBuilder();
        CamelContext ctx = new DefaultCamelContext();

        //configure jms component
        ConnectionFactory connectionFactory = new ActiveMQConnectionFactory("tcp://0.0.0.0:61616");
        ctx.addComponent("jms", JmsComponent.jmsComponentAutoAcknowledge(connectionFactory));

        try {
            ctx.addRoutes(routeBuilder);
            ctx.start();
            Thread.sleep(5 * 60 * 1000);
            ctx.stop();
        }
        catch (Exception e) {
            e.printStackTrace();
        }

    }
}
In C://inputFolder, we have the following employee.txt file-
<employee>
<empName>javainuse</empName>
<empId>1</empId>
</employee>
Now start the ActiveMQ.

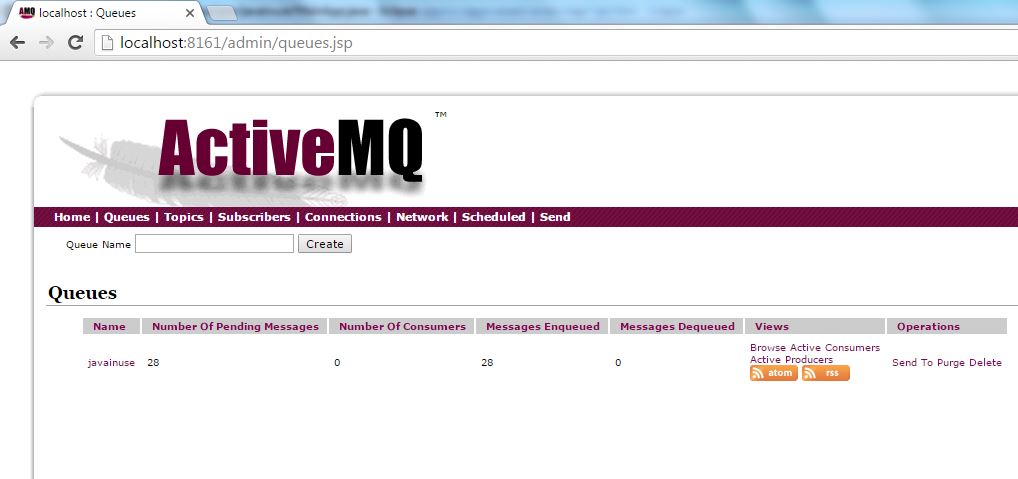

and goto http://localhost:8161/admin/queues.jsp, we will see all no active queues on this page.
Next run the MainApp class as a java application and refresh the above activeMQ page. We will see a new queue named javainuse is created and it has json message in it.

Download Source Code

Download it - Apache Camel Marshalling Unmarshalling Example
