Spring Boot Security + JWT + MySQL Hello World Example

In a previous tutorial we had implemented Spring Boot + JWT Authentication Example
We were making use of hard coded user values for User Authentication. In this tutorial we will be implementing MYSQL JPA for storing and fetching user credentials.

Spring Boot JSON Web Token- Table of Contents
What is JWT(JSON Web Token)
Online JWT Generator
Online JWT Decoder
Spring Boot +JSON Web Token(JWT) Hello World Example
Spring Boot +JSON Web Token(JWT) + MYSQL  Example
Spring Boot RestTemplate + JWT Authentication Example
Spring Boot Security - Refresh Expired JSON Web Token
Angular 7 + Spring Boot JWT Authentication Hello World Example
Online JWT Generator
Online JWT Decoder

Lets Begin?

Implement MYSQL JPA for storing and fetching user details

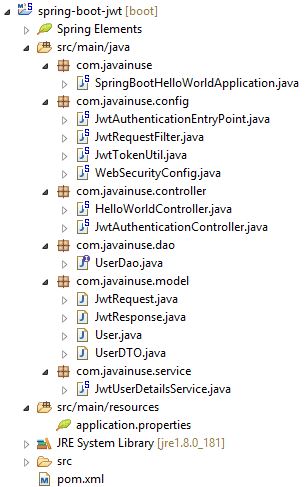

The starting code for this tutorial will be the Spring Boot + JWT Hello World Example we had implemented previously. Currently using JwtUserDetailsService we are validating the user. We are doing this using hard coded values for username and password. Now we will be using Spring Data JPA to validate user credentials by fetching username and password from the mysql db. The maven project will be as follows-

Define the pom.xml as follows-

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.javainuse</groupId>
	<artifactId>spring-boot-jwt-tr</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.1.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-security</artifactId>
		</dependency>
		<dependency>
			<groupId>io.jsonwebtoken</groupId>
			<artifactId>jjwt</artifactId>
			<version>0.9.1</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
	</dependencies>

</project>

Inserting a user

Define the database properties as follows-

jwt.secret=javainuse
spring.datasource.url=jdbc:mysql://localhost/bootdb?createDatabaseIfNotExist=true&autoReconnect=true&useSSL=false
spring.datasource.username=root
spring.datasource.password=root
spring.datasource.platform=mysql
spring.jpa.hibernate.ddl-auto=create-drop

In a previous tutorial we had implemented Spring Boot + Spring Data JPA Hello World Example. Create the Entity class as follows. It will be used while performing database operations-

package com.javainuse.model;

import com.fasterxml.jackson.annotation.JsonIgnore;

import javax.persistence.*;

@Entity
@Table(name = "user")
public class DAOUser {

	@Id
	@GeneratedValue(strategy = GenerationType.IDENTITY)
	private long id;
	@Column
	private String username;
	@Column
	@JsonIgnore
	private String password;

	public String getUsername() {
		return username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}

}

Define the UserDTO model class as follows. It is responsible for getting values from user and passing it to the DAO layer for inserting in database.

package com.javainuse.model;

public class UserDTO {
	private String username;
	private String password;

	public String getUsername() {
		return username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}
}

Next we define the UserDao which is an interface that extends the Spring Framework class CrudRepository. CrudRepository class is a generics and takes the following two parameters as arguments- What type of Object will this repository be working with- In our case DAOUser and Id will be what type of object- Integer(since id defined in the UserDao class is Integer) Thats the only configuration required for the repository class. The required operation of inserting user details in DB will now be handled. Define the DAO class as follows.

package com.javainuse.dao;

import org.springframework.data.repository.CrudRepository;
import org.springframework.stereotype.Repository;

import com.javainuse.model.DAOUser;

@Repository
public interface UserDao extends CrudRepository<DAOUser, Integer> {
}

Allow the url /register to be allowed without applying spring security-

package com.javainuse.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true)
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

	@Autowired
	private JwtAuthenticationEntryPoint jwtAuthenticationEntryPoint;

	@Autowired
	private UserDetailsService jwtUserDetailsService;

	@Autowired
	private JwtRequestFilter jwtRequestFilter;

	@Autowired
	public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
		// configure AuthenticationManager so that it knows from where to load
		// user for matching credentials
		// Use BCryptPasswordEncoder
		auth.userDetailsService(jwtUserDetailsService).passwordEncoder(passwordEncoder());
	}

	@Bean
	public PasswordEncoder passwordEncoder() {
		return new BCryptPasswordEncoder();
	}

	@Bean
	@Override
	public AuthenticationManager authenticationManagerBean() throws Exception {
		return super.authenticationManagerBean();
	}

	@Override
	protected void configure(HttpSecurity httpSecurity) throws Exception {
		// We don't need CSRF for this example
		httpSecurity.csrf().disable()
				// dont authenticate this particular request
				.authorizeRequests().antMatchers("/authenticate", "/register").permitAll().
				// all other requests need to be authenticated
				anyRequest().authenticated().and().
				// make sure we use stateless session; session won't be used to
				// store user's state.
				exceptionHandling().authenticationEntryPoint(jwtAuthenticationEntryPoint).and().sessionManagement()
				.sessionCreationPolicy(SessionCreationPolicy.STATELESS);

		// Add a filter to validate the tokens with every request
		httpSecurity.addFilterBefore(jwtRequestFilter, UsernamePasswordAuthenticationFilter.class);
	}
}

In the JwtUserDetailsService, autowire the UserDao bean and the BcryptEncoder bean. Also define the saveUser function for inserting user details-

package com.javainuse.service;

import java.util.ArrayList;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

import com.javainuse.dao.UserDao;
import com.javainuse.model.DAOUser;
import com.javainuse.model.UserDTO;

public class JwtUserDetailsService implements UserDetailsService {

	@Autowired
	private UserDao userDao;

	@Autowired
	private PasswordEncoder bcryptEncoder;

	@Override
	public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
		if ("javainuse".equals(username)) {
			return new User("javainuse", "$2a$10$slYQmyNdGzTn7ZLBXBChFOC9f6kFjAqPhccnP6DxlWXx2lPk1C3G6",
					new ArrayList<>());
		} else {
			throw new UsernameNotFoundException("User not found with username: " + username);
		}
	}

	public UserDao save(UserDTO user) {
		DAOUser newUser = new DAOUser();
		newUser.setUsername(user.getUsername());
		newUser.setPassword(bcryptEncoder.encode(user.getPassword()));
		return userDao.save(newUser);
	}

}

Finally modify the Controller class for adding a POST request for adding user details to database.

package com.javainuse.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.DisabledException;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import com.javainuse.config.JwtTokenUtil;
import com.javainuse.model.JwtRequest;
import com.javainuse.model.JwtResponse;
import com.javainuse.model.UserDTO;
import com.javainuse.service.JwtUserDetailsService;

@RestController
@CrossOrigin
public class JwtAuthenticationController {

	@Autowired
	private AuthenticationManager authenticationManager;

	@Autowired
	private JwtTokenUtil jwtTokenUtil;

	@Autowired
	private JwtUserDetailsService userDetailsService;

	@RequestMapping(value = "/authenticate", method = RequestMethod.POST)
	public ResponseEntity<?> createAuthenticationToken(@RequestBody JwtRequest authenticationRequest) throws Exception {

		authenticate(authenticationRequest.getUsername(), authenticationRequest.getPassword());

		final UserDetails userDetails = userDetailsService.loadUserByUsername(authenticationRequest.getUsername());

		final String token = jwtTokenUtil.generateToken(userDetails);

		return ResponseEntity.ok(new JwtResponse(token));
	}

	@RequestMapping(value = "/register", method = RequestMethod.POST)
	public ResponseEntity<?> saveUser(@RequestBody UserDTO user) throws Exception {
		return ResponseEntity.ok(userDetailsService.save(user));
	}

	private void authenticate(String username, String password) throws Exception {
		try {
			authenticationManager.authenticate(new UsernamePasswordAuthenticationToken(username, password));
		} catch (DisabledException e) {
			throw new Exception("USER_DISABLED", e);
		} catch (BadCredentialsException e) {
			throw new Exception("INVALID_CREDENTIALS", e);
		}
	}
}

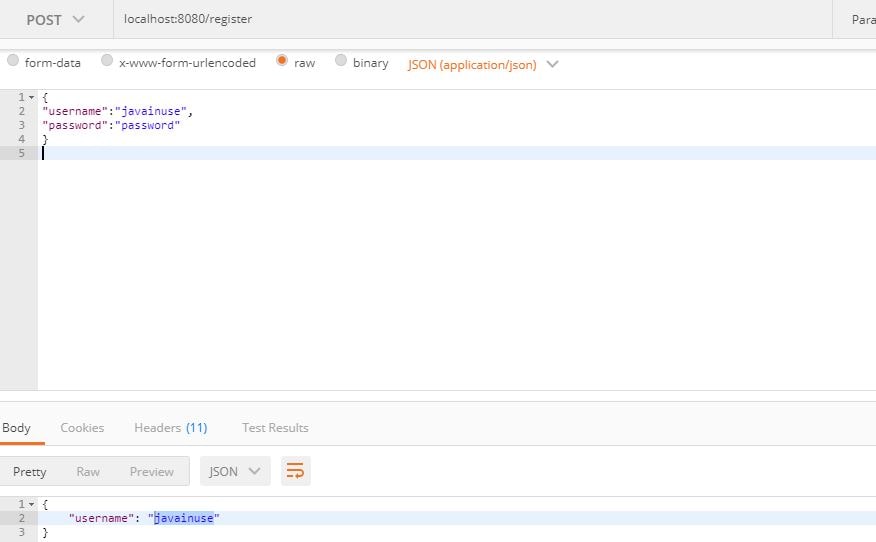

Start the Spring Boot Application- Register a new user by creating a post request to url /register and the body having username and password

Make use of Database credentials for authentication

In the UserDao interface add a method findByUsername(String username)

package com.javainuse.dao;

import org.springframework.data.repository.CrudRepository;
import org.springframework.stereotype.Repository;

import com.javainuse.model.DAOUser;

@Repository
public interface UserDao extends CrudRepository<DAOUser, Integer> {
	UserDao findByUsername(String username);
}

In the loadUserByUsername method, we fetch the user records from the database instead of using hardcoded value.

package com.javainuse.service;

import java.util.ArrayList;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

import com.javainuse.dao.UserDao;
import com.javainuse.model.DAOUser;
import com.javainuse.model.UserDTO;

@Service
public class JwtUserDetailsService implements UserDetailsService {

	@Autowired
	private UserDao userDao;

	@Autowired
	private PasswordEncoder bcryptEncoder;

	@Override
	public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {

		DAOUser user = userDao.findByUsername(username);
		if (user == null) {
			throw new UsernameNotFoundException("User not found with username: " + username);
		}
		return new org.springframework.security.core.userdetails.User(user.getUsername(), user.getPassword(),
				new ArrayList<>());
	}

	public User save(UserDTO user) {
		DAOUser newUser = new DAOUser();
		newUser.setUsername(user.getUsername());
		newUser.setPassword(bcryptEncoder.encode(user.getPassword()));
		return userDao.save(newUser);
	}
}

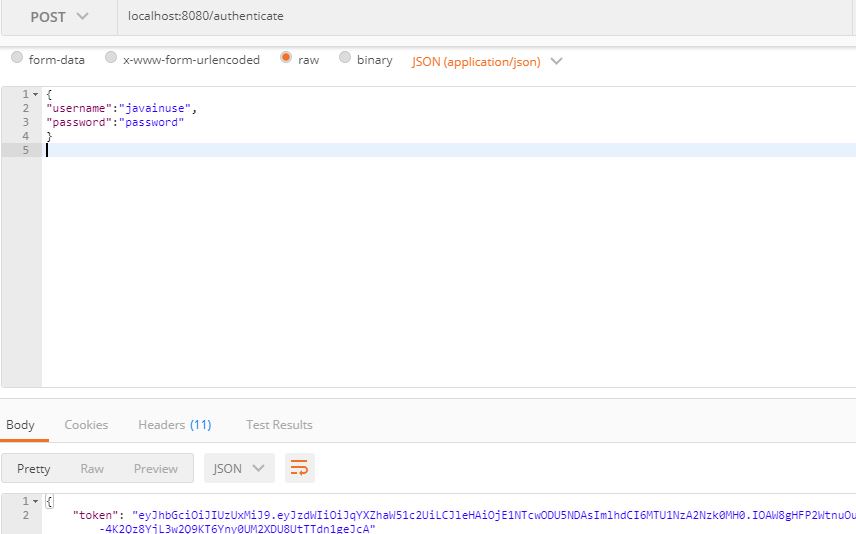

Generate a new Token by creating a post request to url /authenticate and the body having username and password

Download Source Code

Download it -
Spring Boot + JWT with JPA
