Spring Boot Security - Enabling CSRF Protection | JavaInUse

Spring Boot Security - Enabling CSRF Protection

In a previous post we had implemented Spring Boot Security - Password Encoding Using Bcrypt.
But till now in all our examples we had disabled CSRF. CSRF stands for Cross-Site Request Forgery. It is an attack that forces an end user to execute unwanted actions on a web application in which they are currently authenticated. CSRF attacks specifically target state-changing requests, not theft of data, since the attacker has no way to see the response to the forged request.

Spring Boot Security - Table Of Contents

Spring Boot + Simple Security Configuration Spring Boot Form Security Login Hello World Example Spring Boot Security - Custom Login Page Example Spring Boot Security - JDBC Authentication Example Spring Boot Security - Creating Users Programmatically Using JdbcUserDetailsManager Spring Boot Security - Password Encoding Using Bcrypt Spring Boot Security - Enabling CSRF Protection Spring Boot Security - Authentication Handler Example Spring Boot Security - Introduction to OAuth Spring Boot OAuth2 Part 1 - Getting The Authorization Code Spring Boot OAuth2 Part 2 - Getting The Access Token And Using it to Fetch Data.

Video

This tutorial is explained in the below Youtube Video.

Understanding CSRF attack-

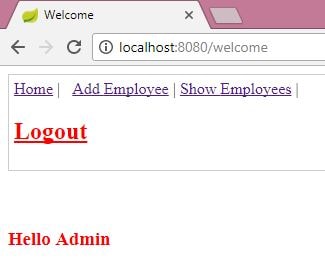

Previously we had Spring Boot Security - Password Encoding Using Bcrypt. Start this application and login using a valid password.
boot-42_4

boot-35_7
Do not close the above window. Now suppose you receive a mail with following content.
Hi JavaInUse

<form method = "post" action="http://localhost:8080/addNewEmployee">
<input id ="empId" type="hidden" name="empId" value="Hacker001"/>
<input id ="empName" type="hidden" name="empName" value="hacker"/>
<input type="SUBMIT" value="Surprise..Surprise..See What This Does" />
</form>

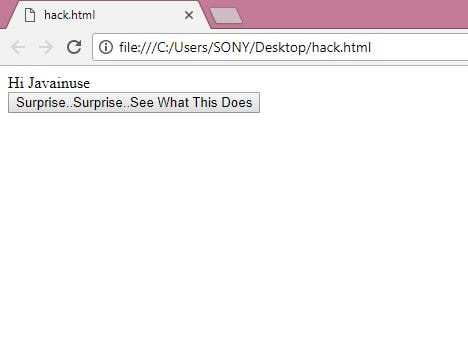

You open this page and click on the surprise button-
boot-44_2

boot-44_3

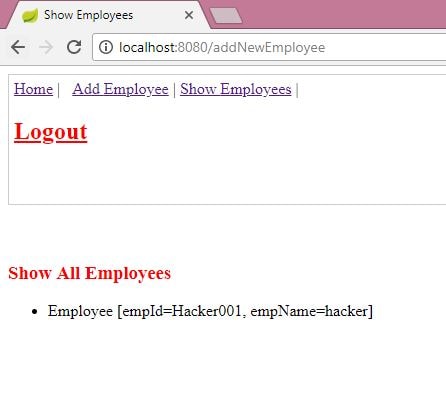

We see that it has added an Employee with name Hacker to our application. This is a CSRF attack. Next we see how to tackle this CSRF attack.

Lets Begin-

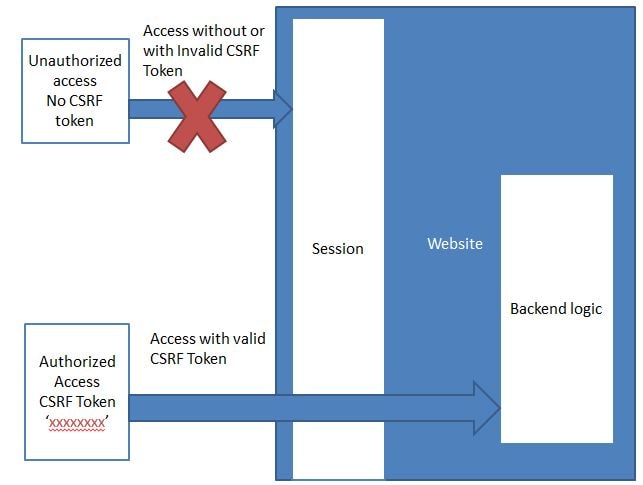

We will be using the CSRF security token to grant access only to authorized users.
boot-44_1
We will be modifying the code we developed in the previous Spring Boot Security - Password Encoding Using Bcrypt
Maven Project will be as follows-

boot-42_3




In the pom.xml add the spring-security-taglibs dependency.
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.javainuse</groupId>
	<artifactId>boot-form-handling</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>boot-form-handling</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.5.2.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-security</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
			<version>5.1.21</version>
		</dependency>

		<dependency>
			<groupId>org.apache.tomcat.embed</groupId>
			<artifactId>tomcat-embed-jasper</artifactId>
		</dependency>

		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-taglibs</artifactId>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

Next we modify the security configuration to enable CSRF by commenting the csrf disabled command .
package com.javainuse.config;

import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.builders.WebSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.provisioning.JdbcUserDetailsManager;

@Configuration
@EnableWebSecurity
public class EmployeeSecurityConfiguration extends WebSecurityConfigurerAdapter {

	@Autowired
	DataSource dataSource;

	@Bean
	public PasswordEncoder passwordEncoder() {
		return new BCryptPasswordEncoder();
	}

	// Enable jdbc authentication
	@Autowired
	public void configAuthentication(AuthenticationManagerBuilder auth) throws Exception {
		auth.jdbcAuthentication().dataSource(dataSource).passwordEncoder(passwordEncoder());
	}

	@Bean
	public JdbcUserDetailsManager jdbcUserDetailsManager() throws Exception {
		JdbcUserDetailsManager jdbcUserDetailsManager = new JdbcUserDetailsManager();
		jdbcUserDetailsManager.setDataSource(dataSource);
		return jdbcUserDetailsManager;
	}

	@Override
	public void configure(WebSecurity web) throws Exception {
		web.ignoring().antMatchers("/resources/**");
	}

	@Override
	protected void configure(HttpSecurity http) throws Exception {
		http.authorizeRequests().antMatchers("/register").permitAll().antMatchers("/welcome")
				.hasAnyRole("USER", "ADMIN").antMatchers("/getEmployees").hasAnyRole("USER", "ADMIN")
				.antMatchers("/addNewEmployee").hasAnyRole("ADMIN").anyRequest().authenticated().and().formLogin()
				.loginPage("/login").permitAll().and().logout().permitAll();

		//http.csrf().disable();
	}

	// @Autowired
	// public void configureGlobal(AuthenticationManagerBuilder authenticationMgr)
	// throws Exception {
	// authenticationMgr.inMemoryAuthentication().withUser("admin").password("admin").authorities("ROLE_USER").and()
	// .withUser("javainuse").password("javainuse").authorities("ROLE_USER",
	// "ROLE_ADMIN");
	// }

}
Next in all the jsp pages add the spring security taglib and the csrf token tag
<%@ taglib prefix="sec" uri="http://www.springframework.org/security/tags" %>
<sec:csrfInput />
Start the application -
  • Go to localhost:8080/welcome, we will be redirected to the custom login page.
    boot-42_1
  • Login using the credentials
    boot-42_4

    boot-35_7

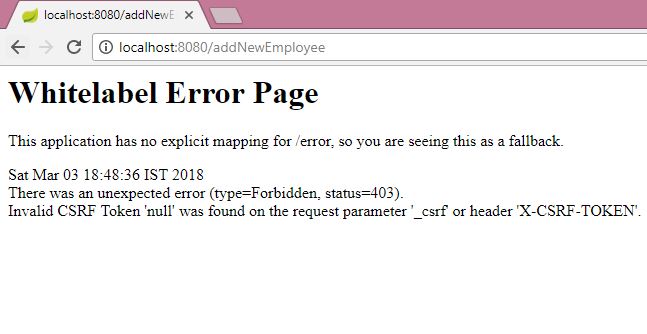

  • Again click on the surprise button of the CSRF attack page
    boot-44_2

    boot-44_4
So our application is now working good.

Download Source Code

Download it -
Spring Boot Security - Securing application against CSRF attack
