Spring Boot + Session Management Hello World Example | JavaInUse

Spring Boot + Session Management Hello World Example

In this post we will be implementing Session Management using Spring Boot. For this tutorial we will be making use of JDBC as the data store for persisting Spring Session information. In the next tutorial we will be making use of Redis as the data store for storing Spring Boot Session information.
First let us have a look at what is session management and how can it be accomplished.

Video

This tutorial is explained in the below Youtube Video.

What is Session Management?

We all know that HTTP is a stateless protocol. All requests and responses are independent. The server cannot distinguish between new visitors and returning visitors. But sometimes we may need to keep track of client's activity across multiple requests. This is achieved using Session Management. It is a mechanism used by the Web container to store session information for a particular user.
Session management can be achieved in one of the following ways-
  • Cookies
  • Hidden form field
  • URL Rewriting
  • HttpSession
In this example we will be making use of HttpSession to achieve Session management. Also we will be using the Spring Session module
Spring Session consists of the following modules:
  • Spring Session Core - provides core Spring Session functionalities and APIs
  • Spring Session Data Redis - provides SessionRepository and ReactiveSessionRepository implementation backed by Redis and configuration support
  • Spring Session JDBC - provides SessionRepository implementation backed by a relational database and configuration support
  • Spring Session Hazelcast - provides SessionRepository implementation backed by Hazelcast and configuration support
In this post we will be using Spring Session JDBC to store spring session information. By default Apache Tomcat stores HTTP session objects in memory.
Spring Boot HTTP Session
In order to achieve writing the session objects to MySQL database, we dont have to write any code. Spring Boot provides us this functionality out of the box by specifying the following configuration property
spring.session.store-type=jdbc
Spring session replaces the HttpSession implementation by a custom implementation. To perform this task spring session creates a SessionRepositoryFilter bean named as springSessionRepositoryFilter.
boot-50_6

Lets Begin-

Maven Project will be as follows-

boot-50_5

In the Maven we need the Spring Session dependency.Maven will be as follows-
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.journaldev.spring</groupId>
	<artifactId>Spring-Boot-Session-Example</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>Spring-Boot-Session-Example</name>
	<description>Spring-Boot-Session-Example</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.3.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-thymeleaf</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.session</groupId>
			<artifactId>spring-session-core</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.session</groupId>
			<artifactId>spring-session-jdbc</artifactId>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>




Create the SpringBootHelloWorldApplication.java as below-
package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootSessionApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringBootSessionApplication.class, args);
	}
}
Create the Controller class as follows-
package com.javainuse.controller;

import java.util.ArrayList;
import java.util.List;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpSession;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;

@Controller
public class SpringSessionController {

	@GetMapping("/")
	public String process(Model model, HttpSession session) {
		@SuppressWarnings("unchecked")
		List<String> messages = (List<String>) session.getAttribute("MY_SESSION_MESSAGES");

		if (messages == null) {
			messages = new ArrayList<>();
		}
		model.addAttribute("sessionMessages", messages);

		return "index";
	}

	@PostMapping("/persistMessage")
	public String persistMessage(@RequestParam("msg") String msg, HttpServletRequest request) {
		@SuppressWarnings("unchecked")
		List<String> messages = (List<String>) request.getSession().getAttribute("MY_SESSION_MESSAGES");
		if (messages == null) {
			messages = new ArrayList<>();
			request.getSession().setAttribute("MY_SESSION_MESSAGES", messages);
		}
		messages.add(msg);
		request.getSession().setAttribute("MY_SESSION_MESSAGES", messages);
		return "redirect:/";
	}

	@PostMapping("/destroy")
	public String destroySession(HttpServletRequest request) {
		request.getSession().invalidate();
		return "redirect:/";
	}
}

So if not already present,we create an ArrayList named MY_SESSION_MESSAGES in a HTTPSession and persist messages in this list
Spring Boot HTTP Session Object
The application.properties will be as follows-
spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost/springSession?createDatabaseIfNotExist=true&autoReconnect=true&useSSL=false
spring.datasource.username=root
spring.datasource.password=root
spring.datasource.initialization-mode=always

spring.h2.console.enabled=true

spring.session.store-type=jdbc
spring.session.jdbc.initialize-schema=always
spring.session.timeout.seconds=900

The index.html will be as follows-
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="UTF-8">
<title>Spring Boot Session Example</title>
</head>
<body>
	<div>
		<form th:action="@{/persistMessage}" method="post">
			<textarea name="msg" cols="40" rows="2"></textarea>
			<br> <input type="submit" value="Save Message" />
		</form>
	</div>
	<div>
		<h2>Messages</h2>
		<ul th:each="message : ${sessionMessages}">
			<li th:text="">msg</li>
		</ul>
	</div>
	<div>
		<form th:action="@{/destroy}" method="post">
			<input type="submit" value="Destroy Session" />
		</form>
	</div>
</body>
</html>
Compile and the run the SpringBootHelloWorldApplication.java as a Java application.

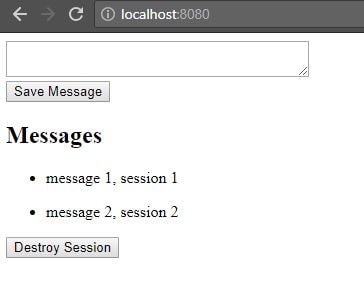

Go to localhost:8080
boot-50_1
We can add the items to be stored in the session. The Spring session created 2 tables for storing session related information.
boot-50_2

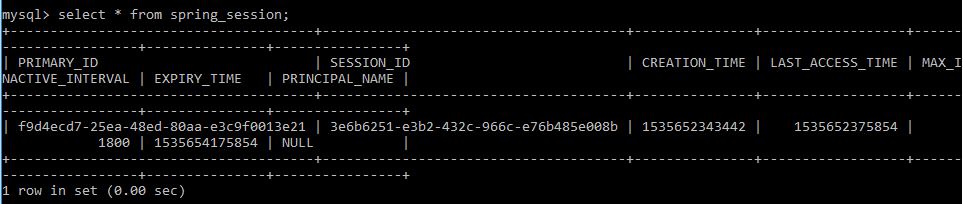

The spring_session table is as follows-
boot-50_3

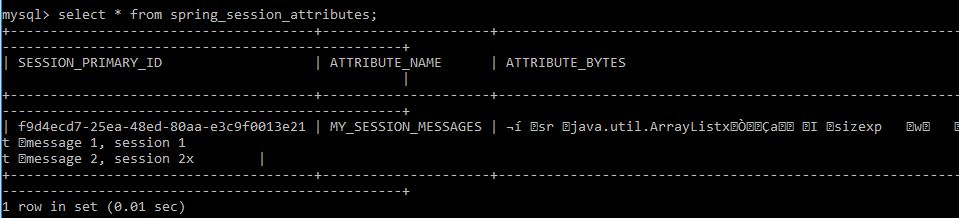

The spring_session_attributes table is as follows-
boot-50_4

Download Source Code

Download it -
Spring Boot + Session Management
