Spring Boot Hazelcast Tutorial- Hello World example | JavaInUse

Spring Boot + Hazelcast Simple Example

In this post we develop a Spring Boot Application with Hazelcast. Previously we had developed a Spring Boot Application for performing JDBC operations. We will developing a similar module in this example and using Hazelcast to cache the data.

What is Hazelcast? Need for it?

  • Hazelcast is a radical, new approach towards data that was designed from the ground up around distribution. It embraces a new, scalable way of thinking in that data should be shared for resilience and performance while allowing us to configure the trade-offs surrounding consistency, as the data requirements dictate. Hazelcast is a distributed, highly available and scalable . You can find other details and tutorials of Hazelcast here.

    Lets Begin-

    The overview of application we will be developing is as follows-
    Maven Project will be as follows-


    In the Maven we need the spring boot test dependency.Maven will be as follows-
    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="" xmlns:xsi=""
    	<description>Demo project for Spring Boot</description>
    		<relativePath /> <!-- lookup parent from repository -->

    In the file specify the datasource properties

As we saw in the Spring Boot JDBC tutorial that any db initialization scripts stored in schema-.sql gets executed automatically.
Since we using HSQL create the schema-hsqldb.sql file and specify the initialization scripts-

CREATE TABLE employee (
  empName VARCHAR(100) NOT NULL

Create the Employee Domain class
package com.javainuse.model;

public class Employee {

	private String empId;
	private String empName;

	public String getEmpId() {
		return empId;

	public void setEmpId(String empId) {
		this.empId = empId;

	public String getEmpName() {
		return empName;

	public void setEmpName(String empName) {
		this.empName = empName;

	public String toString() {
		return "Employee [empId=" + empId + ", empName=" + empName + "]";


Create the Hazelcast configuration class as follows-
package com.javainuse;

import com.hazelcast.config.Config;
import com.hazelcast.config.EvictionPolicy;
import com.hazelcast.config.MapConfig;
import com.hazelcast.config.MaxSizeConfig;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

public class HazelcastConfiguration {

    public Config hazelCastConfig(){
        return new Config()
                        new MapConfig()
                                .setMaxSizeConfig(new MaxSizeConfig(200, MaxSizeConfig.MaxSizePolicy.FREE_HEAP_SIZE))

Create Service interface to specify employee operations to be performed.
package com.javainuse.service;

import java.util.List;

import com.javainuse.model.Employee;

public interface EmployeeService {
	void insertEmployee(Employee emp);
	void insertEmployees(List<Employee> employees);
	void getAllEmployees();
	void getEmployeeById(String empid);

The Service class implementation with hazelcast configurations.
package com.javainuse.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cache.annotation.CacheConfig;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.stereotype.Service;

import com.javainuse.dao.EmployeeDao;
import com.javainuse.model.Employee;
import com.javainuse.service.EmployeeService;

@CacheConfig(cacheNames = "employees");
public class EmployeeServiceImpl implements EmployeeService {

	EmployeeDao employeeDao;

	public void insertEmployee(Employee employee) {

	public void insertEmployees(List<Employee> employees) {

	public List<Employee> getAllEmployees() {
		System.out.println("Inside the service layer");
		return employeeDao.getAllEmployees();


	public void getEmployeeById(String empId) {
		Employee employee = employeeDao.getEmployeeById(empId);


Create the DAO interface.
package com.javainuse.dao;

import java.util.List;

import com.javainuse.model.Employee;

public interface EmployeeDao {
	void insertEmployee(Employee cus);
	void insertEmployees(List<Employee> employees);
	List<Employee> getAllEmployees();
	Employee getEmployeeById(String empId);

The DAO implementation class.
package com.javainuse.dao.impl;

import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

import javax.annotation.PostConstruct;
import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.BatchPreparedStatementSetter;
import org.springframework.jdbc.core.RowMapper;
import org.springframework.stereotype.Repository;

import com.javainuse.dao.EmployeeDao;
import com.javainuse.model.Employee;

public class EmployeeDaoImpl extends JdbcDaoSupport implements EmployeeDao{
	DataSource dataSource;
	private void initialize(){
	public void insertEmployee(Employee emp) {
		String sql = "INSERT INTO employee " +
				"(empId, empName) VALUES (?, ?)" ;
		getJdbcTemplate().update(sql, new Object[]{
				emp.getEmpId(), emp.getEmpName()
	public void insertEmployees(List<Employee> employees) {
		String sql = "INSERT INTO employee " + "(empId, empName) VALUES (?, ?)";
		getJdbcTemplate().batchUpdate(sql, new BatchPreparedStatementSetter() {
			public void setValues(PreparedStatement ps, int i) throws SQLException {
				Employee employee = employees.get(i);
				ps.setString(1, employee.getEmpId());
				ps.setString(2, employee.getEmpName());
			public int getBatchSize() {
				return employees.size();

	public List<Employee> getAllEmployees(){
		String sql = "SELECT * FROM employee";
		List<Map<String, Object>> rows = getJdbcTemplate().queryForList(sql);
		List<Employee> result = new ArrayList<Employee>();
		for(Map<String, Object> row:rows){
			Employee emp = new Employee();
		return result;

	public Employee getEmployeeById(String empId) {
		String sql = "SELECT * FROM employee WHERE empId = ?";
		return (Employee)getJdbcTemplate().queryForObject(sql, new Object[]{empId}, new RowMapper<Employee>(){
			public Employee mapRow(ResultSet rs, int rwNumber) throws SQLException {
				Employee emp = new Employee();
				return emp;

Finally create the class with @SpringBootApplication and EnableCaching annotation.
package com.javainuse;

import java.util.ArrayList;
import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.context.ApplicationContext;

import com.javainuse.model.Employee;
import com.javainuse.service.EmployeeService;

public class SpringBootJdbcApplication {
	EmployeeService employeeService;

	public static void main(String[] args) {
		ApplicationContext context =, args);
		EmployeeService employeeService = context.getBean(EmployeeService.class);
		Employee emp= new Employee();
		Employee emp1= new Employee();
		Employee emp2= new Employee();


		List<Employee> employees = new ArrayList<>();
		System.out.println("Inside the main class making call to service first time");
		List<Employee> employeeList1 = employeeService.getAllEmployees();
		for (Employee employee : employeeList1) {
		System.out.println("Inside the main class making call to service second time where it will use hazelcast");
		List<Employee> employeeList2 = employeeService.getAllEmployees();
		for (Employee employee : employeeList2) {

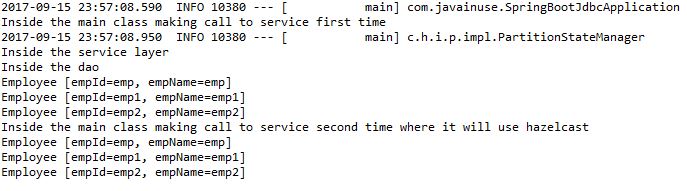

Start the application-


We can see here that the database call is made only during the first call. In the second call the data is fetched from the Hazelcast cache. Download Source Code

Download it -
Spring Boot + Hazelcast
