Spring Boot Form Handling Hello World Example

In this post we develop a spring boot form handling example. We make use of the backing bean. In this post we make use of the concepts we had implemented in previous examples- In this post, we will be using Spring forms to get user information and store it to mysql using Spring Boot JDBC.
A webform, web form or HTML form on a web page allows a user to enter data that is sent to a server for processing. Forms can resemble paper or database forms because web users fill out the forms using checkboxes, radio buttons, or text fields.
We will make use of the Spring annotation @ModelAttribute for data binding.

Video

This tutorial is explained in the below Youtube Video.


Lets Begin-

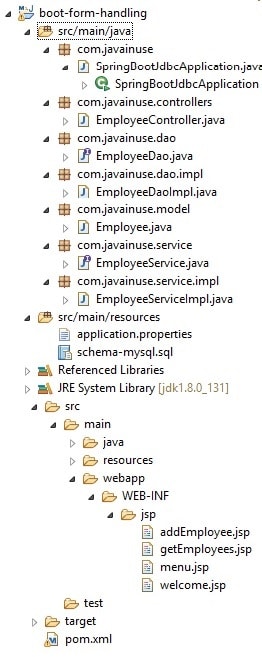

Maven Project will be as follows-

In the Maven we need the spring boot web and the spring boot jdbc dependencies. Maven will be as follows-
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.javainuse</groupId>
	<artifactId>boot-form-handling</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>boot-form-handling</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.5.2.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
			<version>5.1.21</version>
		</dependency>

		<dependency>
			<groupId>org.apache.tomcat.embed</groupId>
			<artifactId>tomcat-embed-jasper</artifactId>
		</dependency>

		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>
As we had done in Spring Boot JDBC tutorial we will first create the DAO and the Service classes.
In the application.properties file specify the datasource properties
spring.datasource.url=jdbc:mysql://localhost/cameldb
spring.datasource.username=root
spring.datasource.password=rida
spring.datasource.platform=mysql
Create the schema-mysql.sql file and specify the initialization scripts-
DROP TABLE IF EXISTS employee;

CREATE TABLE employee (
  empId VARCHAR(10) NOT NULL,
  empName VARCHAR(100) NOT NULL
);

Create the Employee Domain class
package com.javainuse.model;

public class Employee {

	private String empId;
	private String empName;

	public String getEmpId() {
		return empId;
	}

	public void setEmpId(String empId) {
		this.empId = empId;
	}

	public String getEmpName() {
		return empName;
	}

	public void setEmpName(String empName) {
		this.empName = empName;
	}

	@Override
	public String toString() {
		return "Employee [empId=" + empId + ", empName=" + empName + "]";
	}

}
Create Service interface to specify employee operations to be performed.
package com.javainuse.service;

import java.util.List;

import com.javainuse.model.Employee;

public interface EmployeeService {
	void insertEmployee(Employee emp);
	List<Employee> getAllEmployees();
}

The Service class implementation.
package com.javainuse.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.javainuse.dao.EmployeeDao;
import com.javainuse.model.Employee;
import com.javainuse.service.EmployeeService;

@Service
public class EmployeeServiceImpl implements EmployeeService {

	@Autowired
	EmployeeDao employeeDao;

	@Override
	public void insertEmployee(Employee employee) {
		employeeDao.insertEmployee(employee);
	}

	@Override
	public List<Employee> getAllEmployees() {
		return employeeDao.getAllEmployees();
	}


}

Create the DAO interface.
package com.javainuse.dao;

import java.util.List;

import com.javainuse.model.Employee;

public interface EmployeeDao {
	void insertEmployee(Employee cus);
	List<Employee> getAllEmployees();
}
The DAO implementation class.
package com.javainuse.dao.impl;

import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

import javax.annotation.PostConstruct;
import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.BatchPreparedStatementSetter;
import org.springframework.jdbc.core.RowMapper;
import org.springframework.jdbc.core.support.JdbcDaoSupport;
import org.springframework.stereotype.Repository;

import com.javainuse.dao.EmployeeDao;
import com.javainuse.model.Employee;

@Repository
public class EmployeeDaoImpl extends JdbcDaoSupport implements EmployeeDao{

	@Autowired
	DataSource dataSource;

	@PostConstruct
	private void initialize(){
		setDataSource(dataSource);
	}

	@Override
	public void insertEmployee(Employee emp) {
		String sql = "INSERT INTO employee " +
				"(empId, empName) VALUES (?, ?)" ;
		getJdbcTemplate().update(sql, new Object[]{
				emp.getEmpId(), emp.getEmpName()
		});
	}

	@Override
	public List<Employee> getAllEmployees(){
		String sql = "SELECT * FROM employee";
		List<Map<String, Object>> rows = getJdbcTemplate().queryForList(sql);

		List<Employee> result = new ArrayList<Employee>();
		for(Map<String, Object> row:rows){
			Employee emp = new Employee();
			emp.setEmpId((String)row.get("empId"));
			emp.setEmpName((String)row.get("empName"));
			result.add(emp);
		}

		return result;
	}

}
Next we create a controller class where @RequestMapping maps /welcome request to firstPage() method.
We also have mappings for adding and showing employees.
package com.javainuse.controllers;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.validation.Errors;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;

import com.javainuse.model.Employee;
import com.javainuse.service.EmployeeService;

@Controller
public class EmployeeController {

	@Autowired
	EmployeeService employeeService;

    //the welcome page
	@RequestMapping("/welcome")
	public ModelAndView firstPage() {
		return new ModelAndView("welcome");
	}

    //show the add employee form and also pass an empty backing bean object to store the form field values
	@RequestMapping(value = "/addNewEmployee", method = RequestMethod.GET)
	public ModelAndView show() {
		return new ModelAndView("addEmployee", "emp", new Employee());
	}

    //Get the form field vaues which are populated using the backing bean and store it in db
	@RequestMapping(value = "/addNewEmployee", method = RequestMethod.POST)
	public ModelAndView processRequest(@ModelAttribute("emp") Employee emp) {
		employeeService.insertEmployee(emp);
		List<Employee> employees = employeeService.getAllEmployees();
		ModelAndView model = new ModelAndView("getEmployees");
		model.addObject("employees", employees);
		return model;
	}

    //show all employees saved in db
	@RequestMapping("/getEmployees")
	public ModelAndView getEmployees() {
		List<Employee> employees = employeeService.getAllEmployees();
		ModelAndView model = new ModelAndView("getEmployees");
		model.addObject("employees", employees);
		return model;
	}

}

In the application.properties we define the prefix and suffix as follows. So in the above controller the /welcome.html correctly maps to /WEB-INF/jsp/welcome.jsp.
spring.mvc.view.prefix:/WEB-INF/jsp/
spring.mvc.view.suffix:.jsp
Create the SpringBootFormHandingApplication.java as below-
package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootFormHandingApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringBootFormHandingApplication.class, args);
	}
}

Next we define the JSP's as below-
menu.jsp displays the sublinks to the various pages. Its included in all other JSP pages.
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>

<div style="border: 1px solid #ccc; padding: 5px; margin-bottom: 20px;">

	<a href="/welcome">Home</a> |

	<a href="/addNewEmployee">Add
		Employee</a> |   <a
		href="/getEmployees">Show
		Employees</a>

</div>
welcome.jsp just displays the welcome message.

<%@page session="false"%>
<html>
<head>
<title>Welcome</title>
</head>
<body>
	<jsp:include page="menu.jsp" />

	<h3 style="color: red;">Hello Admin</h3>
</body>
</html>

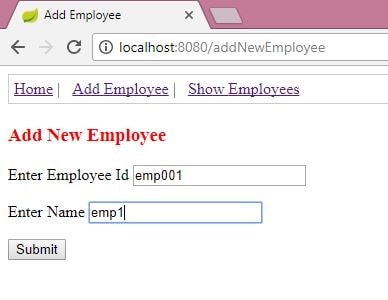

The addEmployee.jsp displays the form for adding a new employee.
We are using the tag library into our JSP page ,the form taglib to help with design our form. Using the Spring form tag with the modelAttribute we specify the backing bean for this form. Each input field we make use of the form:input tag, this automatically binds the field value to the corresponding value of the backing bean object. When the user clicks submit the POST method call is made to the controller and the form is automatically bound to the emp argument we passed.
<%@taglib uri="http://www.springframework.org/tags/form" prefix="form"%>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Add Employee</title>
</head>
<jsp:include page="menu.jsp" />
<body>
	<h3 style="color: red;">Add New Employee</h3>

	<div id="addEmployee">
		<form:form action="/addNewEmployee" method="post"
			modelAttribute="emp">
			<p>
				<label>Enter Employee Id</label>
				<form:input path="empId" />
			</p>
			<p>
				<label>Enter Name</label>
				<form:input path="empName" />
			</p>
			<input type="SUBMIT" value="Submit" />
		</form:form>
	</div>
</body>
</html>

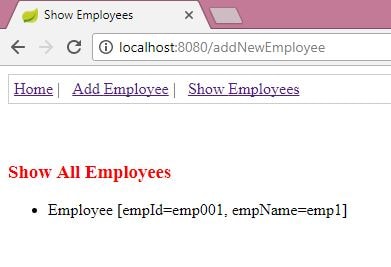

This form displays the list of books.
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%@page session="false"%>
<html>
<head>
<title>Show Employees</title>
</head>
<body>
	<jsp:include page="menu.jsp" />

	<h3 style="color: red;">Show All Employees</h3>
	<ul>
		<c:forEach var="listValue" items="">
			<li></li>
		</c:forEach>
	</ul>
</body>
</html>

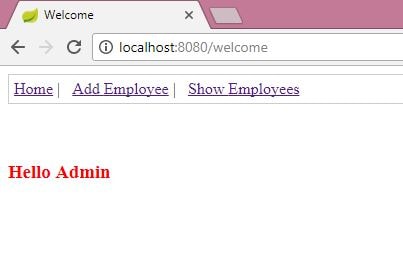

We are done with all the changes. Next run the application and go to localhost:8080/welcome.

Download Source Code

Download it -
Spring Boot Form Handling
